Step1: Product

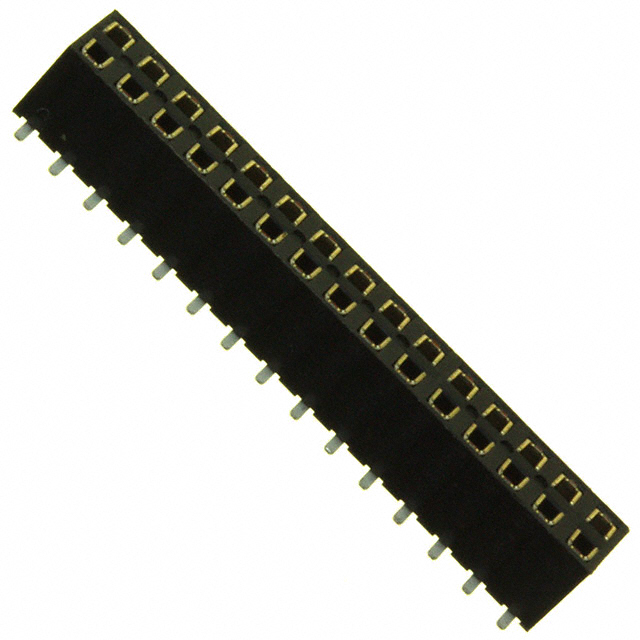

NorComp Inc. 28643006RP2
Image shown is a representation only
Manufacturer
Manufacturer No
28643006RP2
Packaging
Tube
Description
CONN RCPT 30POS 0.079 GOLD SMD
Detailed Description
30 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
Mfr
NorComp Inc.
Series
2864
Packaging
Tube
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.177" (4.50mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
30
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Series | 2864 |
| Packaging | Tube |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 30 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | Flash |
