Step1: Product
NorComp Inc. 26647201RP2

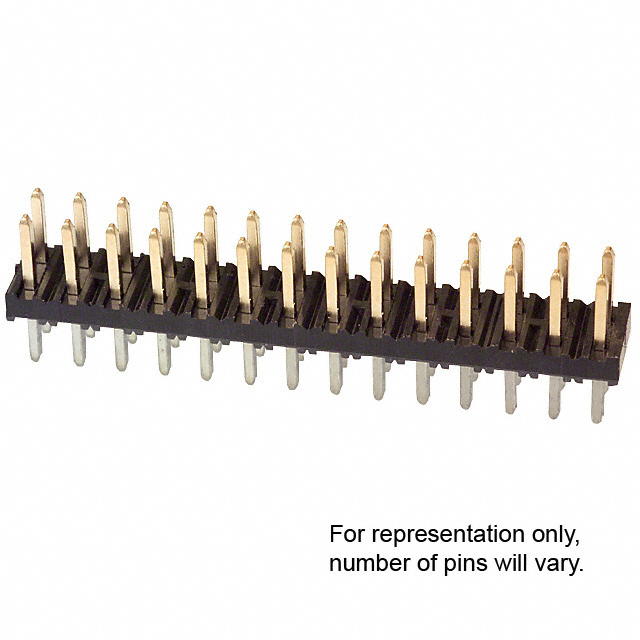

Image shown is a representation only
Manufacturer
Manufacturer No
26647201RP2
Packaging
Bulk
Description
CONN HEADER VERT 72POS 2MM
Detailed Description
Connector Header Through Hole 72 position 0.079" (2.00mm)
DataSheet
Mfr
NorComp Inc.
Style
Board to Board or Cable
Series
2664
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.059" (1.50mm)
Base Product Number
2664720
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
72
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Overall Contact Length
0.327" (8.30mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.150" (3.81mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Style | Board to Board or Cable |
| Series | 2664 |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.059" (1.50mm) |
| Base Product Number | 2664720 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 72 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Overall Contact Length | 0.327" (8.30mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.150" (3.81mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
