Step1: Product

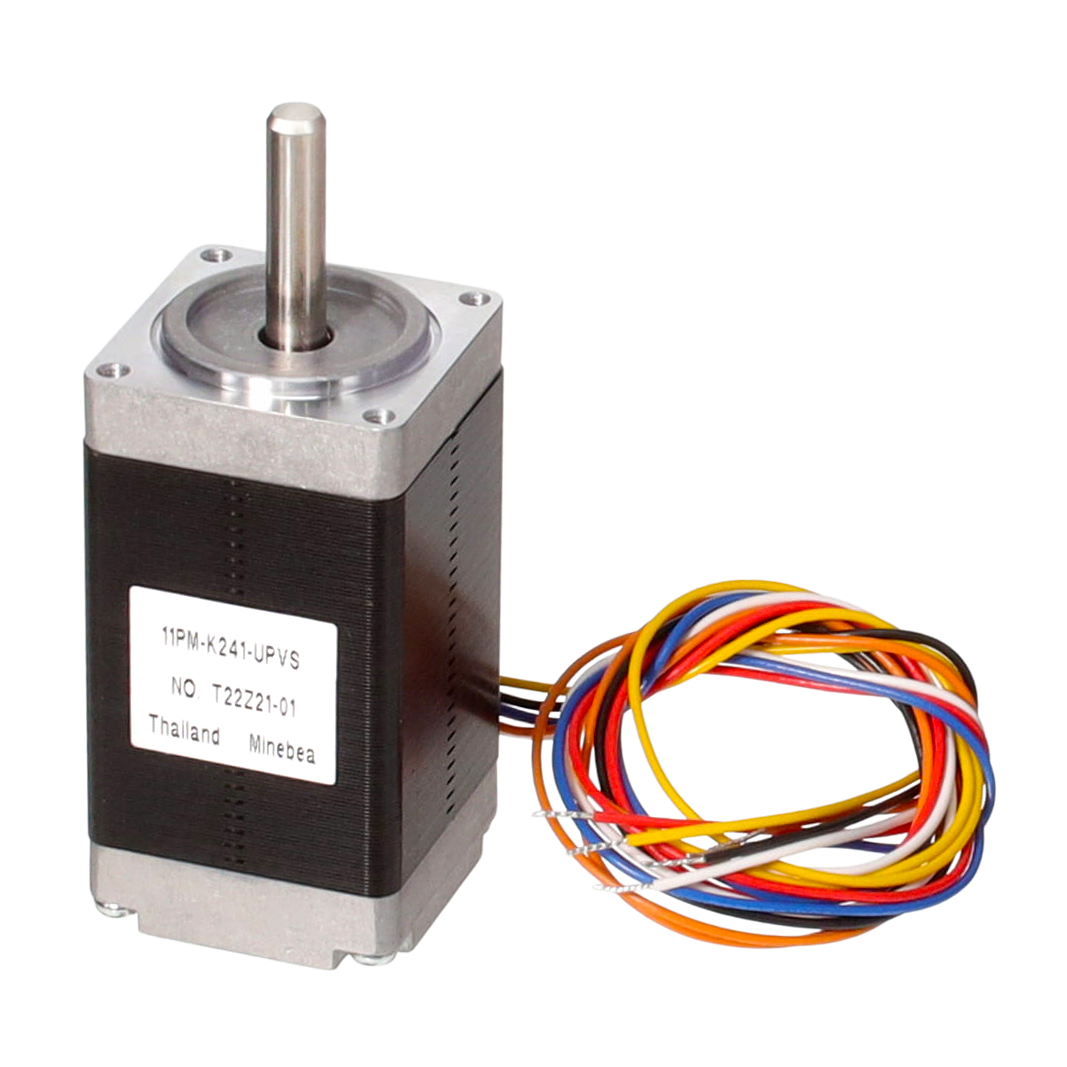

NMB Technologies Corporation 11PM-K241U
Image shown is a representation only
Manufacturer
Manufacturer No
11PM-K241U
Packaging
Bulk
Description
STEP MOTOR HYBRID UNIPOLAR 24V
Detailed Description
Unipolar Stepper Motor Hybrid Frame Size 200.0 Step 1.1 A 24VDC
DataSheet
Mfr
NMB Technologies Corporation
Type
Hybrid
Series
11PM-K
Coil Type
Unipolar
Packaging
Bulk
Step Angle
1.8°
Part Status
Active
Rotor Inertia
16gcm²
Coil Resistance
3.4 Ohms
Voltage - Rated
24VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.102" x 1.102" (28.00mm x 28.00mm)
Termination Style
Connector
Steps per Revolution
200.0
Current Rating (Amps)
1.1 A
Mounting Hole Spacing
0.910" (23.11mm)
Length - Shaft and Bearing
0.787" (20.00mm)
Torque - Holding (oz-in / mNm)
20.53 / 145
| Attribute | Value |
|---|---|
| Mfr | NMB Technologies Corporation |
| Type | Hybrid |
| Series | 11PM-K |
| Coil Type | Unipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Part Status | Active |
| Rotor Inertia | 16gcm² |
| Coil Resistance | 3.4 Ohms |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.102" x 1.102" (28.00mm x 28.00mm) |
| Termination Style | Connector |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 1.1 A |
| Mounting Hole Spacing | 0.910" (23.11mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Torque - Holding (oz-in / mNm) | 20.53 / 145 |
