Step1: Product
NKK Switches YB01WKW01-5C-JB

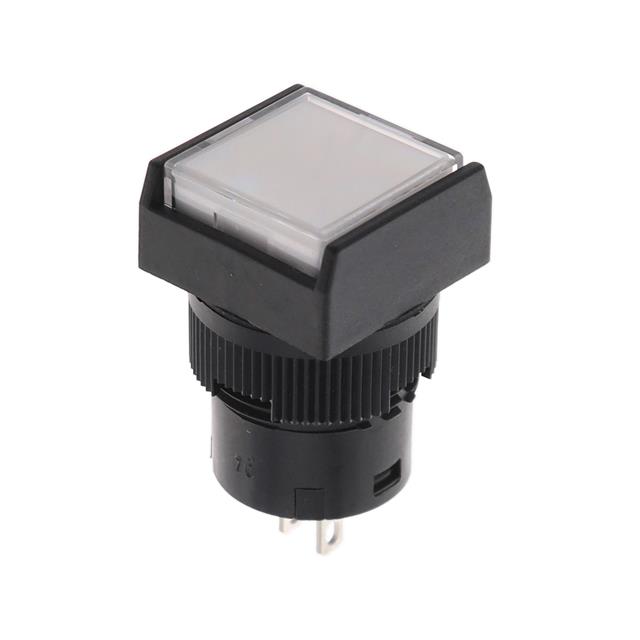

Image shown is a representation only
Manufacturer
Manufacturer No
YB01WKW01-5C-JB
Packaging
Bulk
Description
LED PNL IND RED CLEAR 15.00MM
Detailed Description
LED Panel Indicator Red Clear 1.9V 40mA Quick Connect, Solder Lug - 0.110" (2.8mm)
DataSheet
Type
LED
Series
YB
Current
40mA
Ratings
Vf (Typ), If (Max)
Voltage
1.9V
Lens Size
15.00mm
Packaging
Bulk
Lamp Color
Red
Lens Color
White
Lens Style
Square with Flat Top
Part Status
Active
Manufacturer
NKK Switches
Lens Transparency
Clear
Termination Style
Quick Connect, Solder Lug - 0.110" (2.8mm)
Panel Cutout Shape
Round
Base Product Number
YB01
Panel Cutout Dimensions
0.63" (16.00mm)
| Attribute | Value |
|---|---|
| Type | LED |
| Series | YB |
| Current | 40mA |
| Ratings | Vf (Typ), If (Max) |
| Voltage | 1.9V |
| Lens Size | 15.00mm |
| Packaging | Bulk |
| Lamp Color | Red |
| Lens Color | White |
| Lens Style | Square with Flat Top |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Lens Transparency | Clear |
| Termination Style | Quick Connect, Solder Lug - 0.110" (2.8mm) |
| Panel Cutout Shape | Round |
| Base Product Number | YB01 |
| Panel Cutout Dimensions | 0.63" (16.00mm) |
