Step1: Product

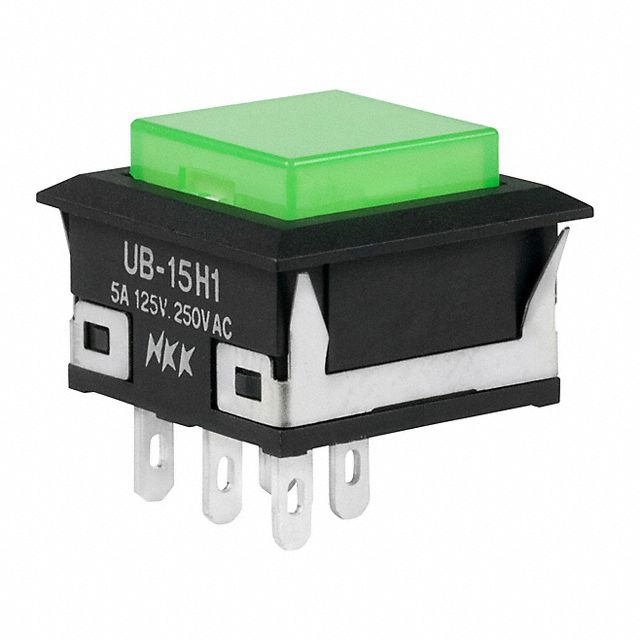

NKK Switches UB15KKW015F-FB
Image shown is a representation only
Manufacturer
Manufacturer No
UB15KKW015F-FB
Packaging
Bulk
Description
SWITCH PUSHBUTTON SPDT 5A 125V
Detailed Description
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
DataSheet
Mfr
NKK Switches
Type
Standard, Illuminated
Series
UB
Circuit
SPDT
Features
Photo Interrupter
Packaging
Bulk
Part Status
Active
Actuator Type
Square, Button
Mounting Type
Panel Mount, Snap-In
Electrical Life
10,000 Cycles
Mechanical Life
1,000,000 Cycles
Switch Function
On-Mom
Actuator Marking
No Marking
Termination Style
Solder Lug
Base Product Number
UB15KKW
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Color - Actuator/Cap
Green (White Filter/Diffuser)
Current Rating (Amps)
5A (AC/DC)
Operating Temperature
-25°C ~ 50°C
Panel Cutout Dimensions
Square - 16.20mm x 16.20mm
Illumination Type, Color
LED, Green
Illumination Voltage (Nominal)
2.1 VDC
| Attribute | Value |
|---|---|
| Mfr | NKK Switches |
| Type | Standard, Illuminated |
| Series | UB |
| Circuit | SPDT |
| Features | Photo Interrupter |
| Packaging | Bulk |
| Part Status | Active |
| Actuator Type | Square, Button |
| Mounting Type | Panel Mount, Snap-In |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Mom |
| Actuator Marking | No Marking |
| Termination Style | Solder Lug |
| Base Product Number | UB15KKW |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Color - Actuator/Cap | Green (White Filter/Diffuser) |
| Current Rating (Amps) | 5A (AC/DC) |
| Operating Temperature | -25°C ~ 50°C |
| Panel Cutout Dimensions | Square - 16.20mm x 16.20mm |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2.1 VDC |
