Step1: Product
NKK Switches MRK206-BA

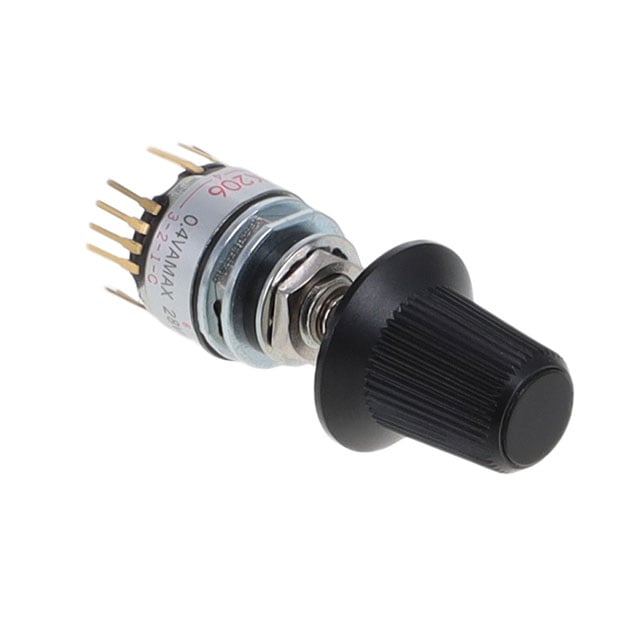

Image shown is a representation only
Manufacturer
Manufacturer No
MRK206-BA
Description
SWITCH ROTARY 2-6POS 0.4VA 28V
Detailed Description
Rotary Switch 2 ~ 6 Position DP6T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
DataSheet
Series
MR
Features
Process Sealed
Index Stops
Adjustable
Part Status
Active
Manufacturer
NKK Switches
Actuator Type
Knob
Mounting Type
Panel Mount, Through Hole
Angle of Throw
30°
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
14.30mm
Number of Decks
1
Circuit per Deck
DP6T
Contact Material
Phosphor Bronze
Termination Style
PC Pin
Depth Behind Panel
10.10mm
Base Product Number
MRK206
Number of Positions
2 ~ 6
Voltage Rating - AC
28 V
Voltage Rating - DC
28 V
Current Rating (Amps)
0.4VA (AC/DC)
Panel Cutout Dimensions
Circular - 6.35mm Dia
Number of Poles per Deck
2
| Attribute | Value |
|---|---|
| Series | MR |
| Features | Process Sealed |
| Index Stops | Adjustable |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Actuator Type | Knob |
| Mounting Type | Panel Mount, Through Hole |
| Angle of Throw | 30° |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 14.30mm |
| Number of Decks | 1 |
| Circuit per Deck | DP6T |
| Contact Material | Phosphor Bronze |
| Termination Style | PC Pin |
| Depth Behind Panel | 10.10mm |
| Base Product Number | MRK206 |
| Number of Positions | 2 ~ 6 |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Number of Poles per Deck | 2 |
