Step1: Product

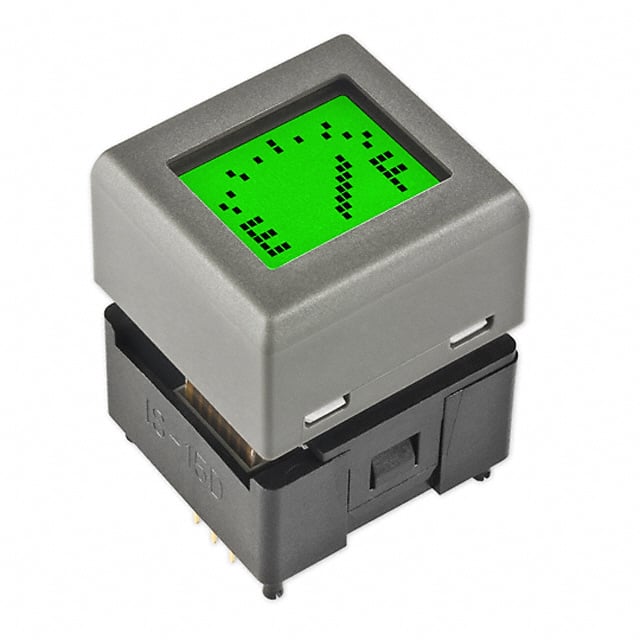

NKK Switches IS15DSBFP4RGB
Image shown is a representation only
Manufacturer
Manufacturer No
IS15DSBFP4RGB
Packaging
Bulk
Description
SW PROG DISPLAY SPST-NO 0.1A 12V
Detailed Description
Programmable Display Switch Pushbutton, LCD SPST-NO 0.1A @ 12VDC Through Hole
DataSheet
Type
Pushbutton, LCD
Style
Compact, High Resolution
Series
SmartDisplay™
Circuit
SPST-NO
Face Size
19.0mm L x 18.0mm W
LED Color
Red - Green - Blue
Packaging
Bulk
Part Status
Obsolete
Display Mode
Black and White, FSTN Positive
Manufacturer
NKK Switches
Pixel Format
64 x 32
Travel Range
1.8mm
Viewing Area
13.0mm L x 10.7mm W
Mounting Type
Through Hole
Supply Voltage
4.9 ~ 5.1VDC
Operating Force
173gf
Switch Function
Off-Mom
Termination Style
PC Pin
LED Forward Current
10, 10, 10mA
LED Forward Voltage
2.1, 3.3, 3.3VDC
Operating Temperature
-15°C ~ 50°C
Contact Rating @ Voltage
0.1A @ 12VDC
| Attribute | Value |
|---|---|
| Type | Pushbutton, LCD |
| Style | Compact, High Resolution |
| Series | SmartDisplay™ |
| Circuit | SPST-NO |
| Face Size | 19.0mm L x 18.0mm W |
| LED Color | Red - Green - Blue |
| Packaging | Bulk |
| Part Status | Obsolete |
| Display Mode | Black and White, FSTN Positive |
| Manufacturer | NKK Switches |
| Pixel Format | 64 x 32 |
| Travel Range | 1.8mm |
| Viewing Area | 13.0mm L x 10.7mm W |
| Mounting Type | Through Hole |
| Supply Voltage | 4.9 ~ 5.1VDC |
| Operating Force | 173gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| LED Forward Current | 10, 10, 10mA |
| LED Forward Voltage | 2.1, 3.3, 3.3VDC |
| Operating Temperature | -15°C ~ 50°C |
| Contact Rating @ Voltage | 0.1A @ 12VDC |
