Step1: Product

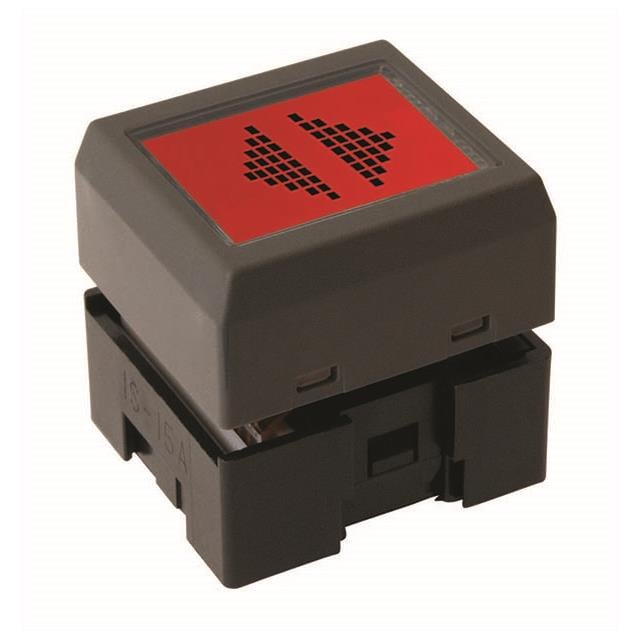

NKK Switches IS15BSAFP4CF
Image shown is a representation only
Manufacturer
Manufacturer No
IS15BSAFP4CF
Packaging
Bulk
Description
SW PROG DISPLAY SPST-NO 0.1A 12V
Detailed Description
Programmable Display Switch Pushbutton, LCD SPST-NO 0.1A @ 12VDC Through Hole
Datasheet
Type
Pushbutton, LCD
Style
Compact
Series
SmartDisplay™
Circuit
SPST-NO
Face Size
19.0mm L x 18.0mm W
LED Color
Red - Green
Packaging
Bulk
Display Mode
Black and White, FSTN Positive
Manufacturer
NKK Switches
Pixel Format
36 x 24
Travel Range
1.8mm
Viewing Area
14.5mm L x 11.8mm W
Mounting Type
Through Hole
Supply Voltage
3.0 ~ 5.5VDC
Operating Force
173gf
Switch Function
Off-Mom
Termination Style
PC Pin
Base Product Number
IS15BSAF
LED Forward Current
15, 15mA
LED Forward Voltage
1.9, 1.9VDC
Operating Temperature
-15°C ~ 50°C
Contact Rating @ Voltage
0.1A @ 12VDC
| Attribute | Value |
|---|---|
| Type | Pushbutton, LCD |
| Style | Compact |
| Series | SmartDisplay™ |
| Circuit | SPST-NO |
| Face Size | 19.0mm L x 18.0mm W |
| LED Color | Red - Green |
| Packaging | Bulk |
| Display Mode | Black and White, FSTN Positive |
| Manufacturer | NKK Switches |
| Pixel Format | 36 x 24 |
| Travel Range | 1.8mm |
| Viewing Area | 14.5mm L x 11.8mm W |
| Mounting Type | Through Hole |
| Supply Voltage | 3.0 ~ 5.5VDC |
| Operating Force | 173gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Base Product Number | IS15BSAF |
| LED Forward Current | 15, 15mA |
| LED Forward Voltage | 1.9, 1.9VDC |
| Operating Temperature | -15°C ~ 50°C |
| Contact Rating @ Voltage | 0.1A @ 12VDC |
