Step1: Product

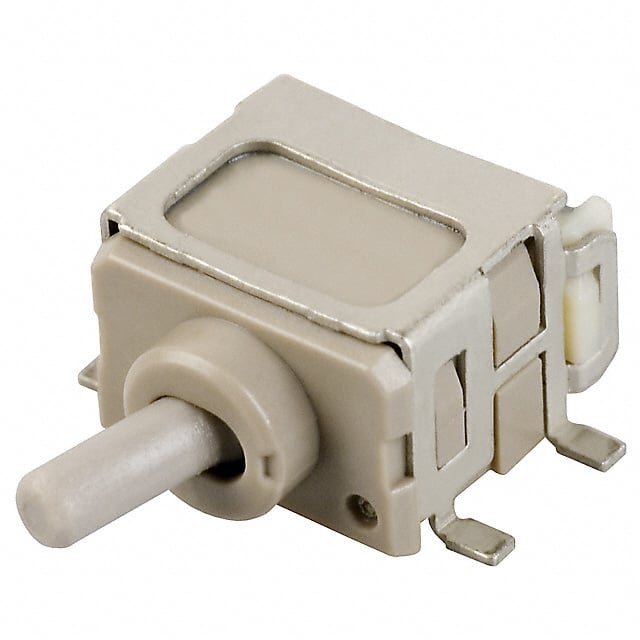

NKK Switches G3T12AH-R
Image shown is a representation only
Manufacturer
Manufacturer No
G3T12AH-R
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TOGGLE SPDT 0.4VA 28V
Detailed Description
Toggle Switch SPDT Surface Mount, Right Angle
DataSheet
Mfr
NKK Switches
Series
G3T
Circuit
SPDT
Features
Process Sealed
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard Round
Mounting Type
Surface Mount, Right Angle
Bushing Thread
Unthreaded
Actuator Length
3.81mm
Electrical Life
50,000 Cycles
Switch Function
On-On
Actuator Material
Polyphenylene Sulfide (PPS)
Termination Style
Gull Wing
Base Product Number
G3T12A
Voltage Rating - AC
28 V
Voltage Rating - DC
28 V
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Mfr | NKK Switches |
| Series | G3T |
| Circuit | SPDT |
| Features | Process Sealed |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard Round |
| Mounting Type | Surface Mount, Right Angle |
| Bushing Thread | Unthreaded |
| Actuator Length | 3.81mm |
| Electrical Life | 50,000 Cycles |
| Switch Function | On-On |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Termination Style | Gull Wing |
| Base Product Number | G3T12A |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
