Step1: Product
Nisshinbo Micro Devices Inc. R1280D002B-TR-FE

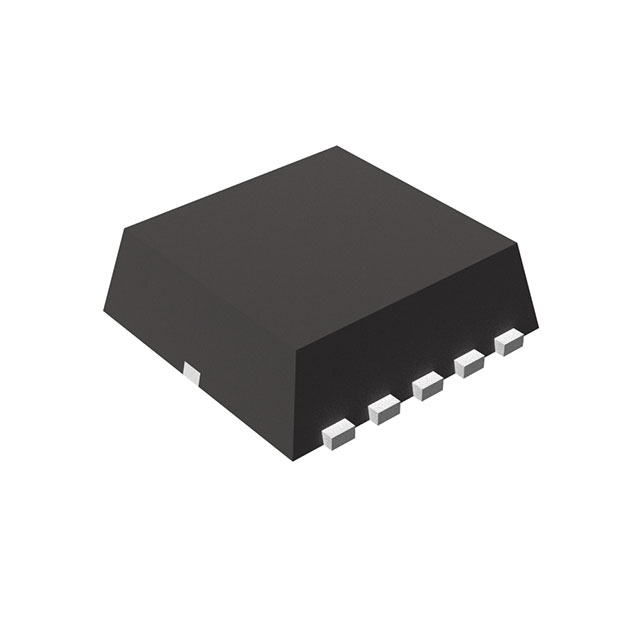

Image shown is a representation only
Manufacturer
Manufacturer No
R1280D002B-TR-FE
Package
10-VFDFN
Packaging
Tape & Reel (TR)
Description
PWM STEP-UP/INVERTING DCDC CONTR
Detailed Description
Boost Regulator Positive Output Step-Up DC-DC Controller IC 10-SON (2.9x2.8)
DataSheet
Function
Step-Up
Topology
Boost
Packaging
Tape & Reel (TR)
Clock Sync
No
Output Type
PWM
Part Status
Obsolete
Manufacturer
Nisshinbo Micro Devices Inc.
Mounting Type
Surface Mount
Output Phases
1
Package / Case
10-VFDFN
Control Features
Enable
Number of Outputs
2
Base Product Number
R1280
Output Configuration
Positive
Frequency - Switching
700kHz
Operating Temperature
-40°C ~ 85°C
Synchronous Rectifier
No
Supplier Device Package
10-SON (2.9x2.8)
Voltage - Supply (Vcc/Vdd)
2.5V ~ 5.5V
| Attribute | Value |
|---|---|
| Function | Step-Up |
| Topology | Boost |
| Packaging | Tape & Reel (TR) |
| Clock Sync | No |
| Output Type | PWM |
| Part Status | Obsolete |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 10-VFDFN |
| Control Features | Enable |
| Number of Outputs | 2 |
| Base Product Number | R1280 |
| Output Configuration | Positive |
| Frequency - Switching | 700kHz |
| Operating Temperature | -40°C ~ 85°C |
| Synchronous Rectifier | No |
| Supplier Device Package | 10-SON (2.9x2.8) |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
