Step1: Product
Nisshinbo Micro Devices Inc. NJU7660AM-TE1

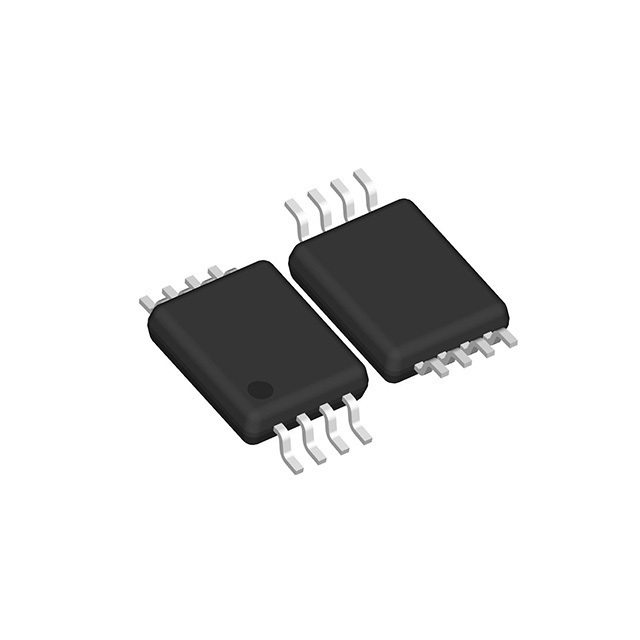

Image shown is a representation only
Manufacturer
Manufacturer No
NJU7660AM-TE1
Quantity
864
Availability
In Stock
Package
8-SOIC (0.268", 6.81mm Width)
Packaging
Tape & Reel (TR)
Description
IC REG CHARG PUMP INV 20MA 8SOIC
Detailed Description
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 20mA 8-SOIC (0.268", 6.81mm Width)
DataSheet
Mfr
Nisshinbo Micro Devices Inc.
Function
Ratiometric
Topology
Charge Pump
Packaging
Tape & Reel (TR)
Output Type
Fixed
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.268", 6.81mm Width)
Current - Output
20mA
Number of Outputs
1
Base Product Number
NJU7660
Output Configuration
Positive or Negative
Frequency - Switching
5kHz
Operating Temperature
-40°C ~ 85°C (TA)
Synchronous Rectifier
No
Voltage - Input (Max)
10V
Voltage - Input (Min)
1.5V
Supplier Device Package
8-SOIC
Voltage - Output (Min/Fixed)
-Vin, 2Vin
| Attribute | Value |
|---|---|
| Mfr | Nisshinbo Micro Devices Inc. |
| Function | Ratiometric |
| Topology | Charge Pump |
| Packaging | Tape & Reel (TR) |
| Output Type | Fixed |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.268", 6.81mm Width) |
| Current - Output | 20mA |
| Number of Outputs | 1 |
| Base Product Number | NJU7660 |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 5kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Synchronous Rectifier | No |
| Voltage - Input (Max) | 10V |
| Voltage - Input (Min) | 1.5V |
| Supplier Device Package | 8-SOIC |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
