Step1: Product

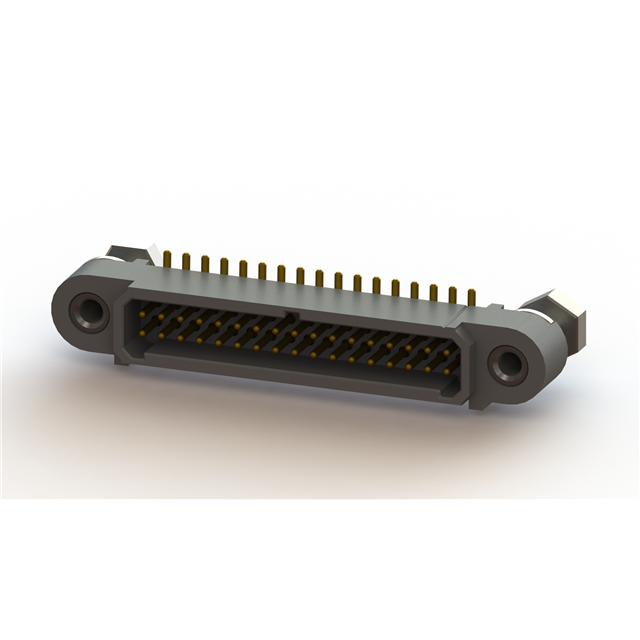

Nicomatic A221T34V22
Image shown is a representation only
Manufacturer
Manufacturer No
A221T34V22
Packaging
Bulk
Description
MALE 34POS STRAIGHT SMT 1MM
Detailed Description
Connector Header Surface Mount 34 position 0.039" (1.00mm)
DataSheet
Mfr
Nicomatic
Style
Board to Board or Cable
Features
Mating Flange, Mounting Flange, Mounting Hardware
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Screw Lock
Number of Rows
2
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
600VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.157" (4.00mm)
Base Product Number
A221T34V
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
34
Row Spacing - Mating
0.039" (1.00mm)
Contact Finish - Post
Gold
Current Rating (Amps)
2.5A
Operating Temperature
-65°C ~ 200°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
5.90µin (0.150µm)
Contact Finish Thickness - Mating
5.90µin (0.150µm)
| Attribute | Value |
|---|---|
| Mfr | Nicomatic |
| Style | Board to Board or Cable |
| Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Screw Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 600VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.157" (4.00mm) |
| Base Product Number | A221T34V |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 34 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -65°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
