Step1: Product

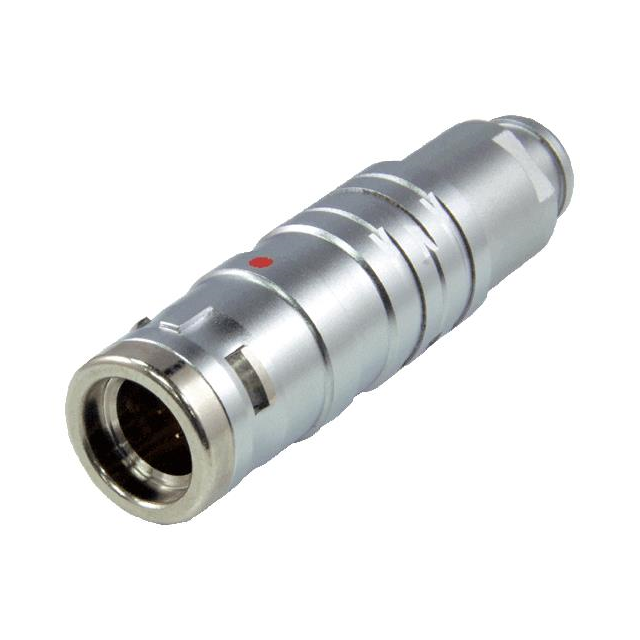

Nextron R-F2KS1902C1060
Image shown is a representation only
Manufacturer
Manufacturer No
R-F2KS1902C1060
Packaging
Bag
Description
2K, STRAIGHT PLUG, 19PIN, IP68
Detailed Description
19 Position Circular Connector Plug, Male Pins Solder Cup
DataSheet
Mfr
Nextron
Color
Silver
Features
Backshell
Packaging
Bag
Shielding
Unshielded
Orientation
0°
Part Status
Active
Termination
Solder Cup
Applications
Industrial, Medical
Shell Finish
Nickel
Cable Opening
0.220" ~ 0.236" (5.60mm ~ 6.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Push-Pull, Detent Lock
Shell Material
Copper Alloy
Insert Material
Polyetheretherketone (PEEK)
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
19
Shell Size - Insert
2K
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 200°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Copper Alloy, Nickel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Nextron |
| Color | Silver |
| Features | Backshell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | 0° |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial, Medical |
| Shell Finish | Nickel |
| Cable Opening | 0.220" ~ 0.236" (5.60mm ~ 6.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Push-Pull, Detent Lock |
| Shell Material | Copper Alloy |
| Insert Material | Polyetheretherketone (PEEK) |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 19 |
| Shell Size - Insert | 2K |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Copper Alloy, Nickel |
| Material Flammability Rating | UL94 V-0 |
