Step1: Product
NextGen Components Group CD4M00000SF200

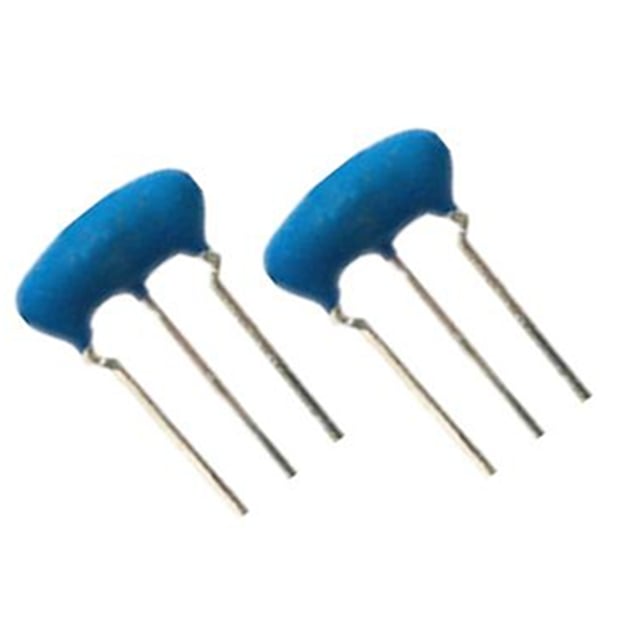

Image shown is a representation only
Manufacturer
Manufacturer No
CD4M00000SF200
Package
Radial - 3 Lead, 2.50mm Pitch
Packaging
Cut Tape (CT); Tape & Box (TB)
Description
4MHZ CERAMIC RESONATOR 3PIN 5% T
Detailed Description
4 MHz Ceramic Resonator 30 pF ±0.5% 80 Ohms -25°C ~ 85°C Through Hole
DataSheet
Type
Ceramic
Height
0.236" (6.00mm)
Series
CD
Frequency
4 MHz
Impedance
80 Ohms
Packaging
Cut Tape (CT); Tape & Box (TB)
Capacitance
30 pF
Part Status
Active
Manufacturer
NextGen Components Group
Mounting Type
Through Hole
Package / Case
Radial - 3 Lead, 2.50mm Pitch
Size / Dimension
0.374" L x 0.157" W (9.50mm x 4.00mm)
Frequency Stability
±0.5%
Frequency Tolerance
±0.5%
Operating Temperature
-25°C ~ 85°C
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Height | 0.236" (6.00mm) |
| Series | CD |
| Frequency | 4 MHz |
| Impedance | 80 Ohms |
| Packaging | Cut Tape (CT); Tape & Box (TB) |
| Capacitance | 30 pF |
| Part Status | Active |
| Manufacturer | NextGen Components Group |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.374" L x 0.157" W (9.50mm x 4.00mm) |
| Frequency Stability | ±0.5% |
| Frequency Tolerance | ±0.5% |
| Operating Temperature | -25°C ~ 85°C |
