Nexperia USA Inc. PMCM6501UPEZ

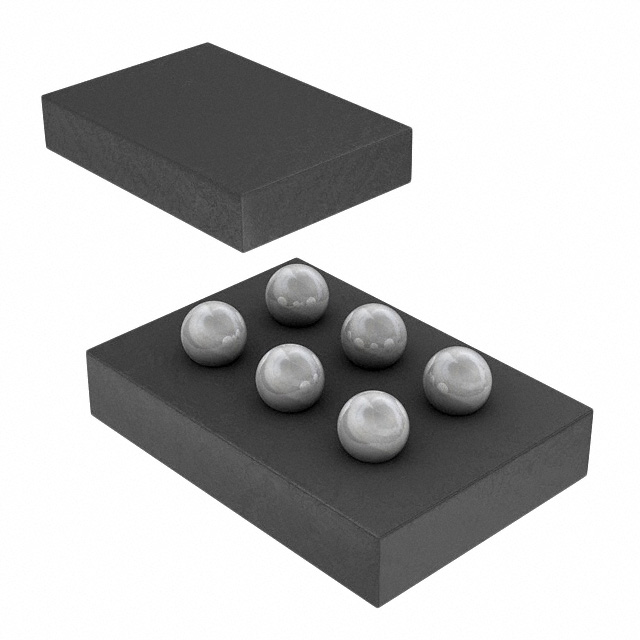

Image shown is a representation only
Manufacturer
Manufacturer No
PMCM6501UPEZ
Package
6-XFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET P-CH 20V 6WLCSP
Detailed Description
P-Channel 20 V 7.3A (Tj) 556mW Surface Mount 6-WLCSP (1.48x0.98)
DataSheet
Mfr
Nexperia USA Inc.
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±8V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
6-XFBGA, WLCSP
Base Product Number
PMCM6501
Operating Temperature
150°C (TJ)
Power Dissipation (Max)
556mW
Supplier Device Package
6-WLCSP (1.48x0.98)
Gate Charge (Qg) (Max) @ Vgs
19.1 nC @ 4.5 V
Drain to Source Voltage (Vdss)
20 V
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
7.3A (Tj)
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFBGA, WLCSP |
| Base Product Number | PMCM6501 |
| Operating Temperature | 150°C (TJ) |
| Power Dissipation (Max) | 556mW |
| Supplier Device Package | 6-WLCSP (1.48x0.98) |
| Gate Charge (Qg) (Max) @ Vgs | 19.1 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 7.3A (Tj) |
