Nexperia USA Inc. PESD4USB3BTTS-QX

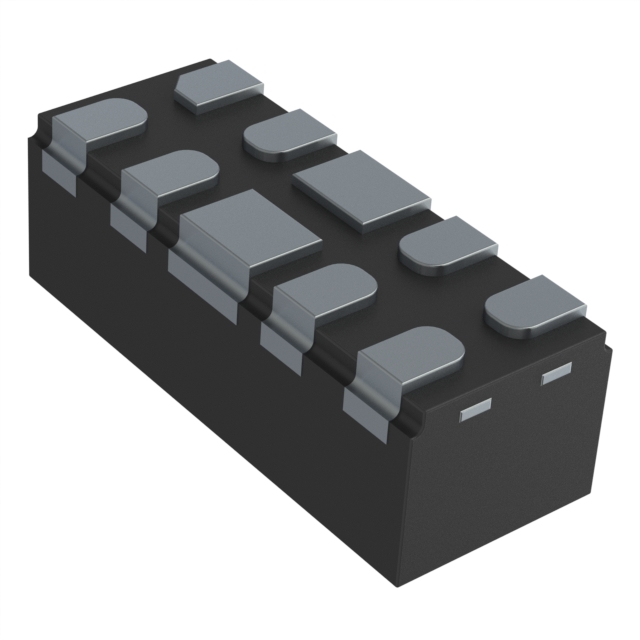

Image shown is a representation only
Manufacturer
Manufacturer No
PESD4USB3BTTS-QX
Quantity
100
Availability
In Stock
Package
10-WFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 3.3VWM 5.5V DFN2510D10
Detailed Description
5.5V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN2510D-10
DataSheet
Mfr
Nexperia USA Inc.
Type
Zener
Grade
Automotive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
HDMI, USB
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q101
Package / Case
10-WFDFN
Base Product Number
PESD4
Operating Temperature
-55°C ~ 150°C (TA)
Power Line Protection
No
Bidirectional Channels
4
Capacitance @ Frequency
0.24pF @ 1MHz
Supplier Device Package
DFN2510D-10
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
5.5V (Typ)
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Current - Peak Pulse (10/1000µs)
7A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| Type | Zener |
| Grade | Automotive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | HDMI, USB |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q101 |
| Package / Case | 10-WFDFN |
| Base Product Number | PESD4 |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 4 |
| Capacitance @ Frequency | 0.24pF @ 1MHz |
| Supplier Device Package | DFN2510D-10 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 5.5V (Typ) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
