Step1: Product
Nexperia USA Inc. IP4387CX4/P,315

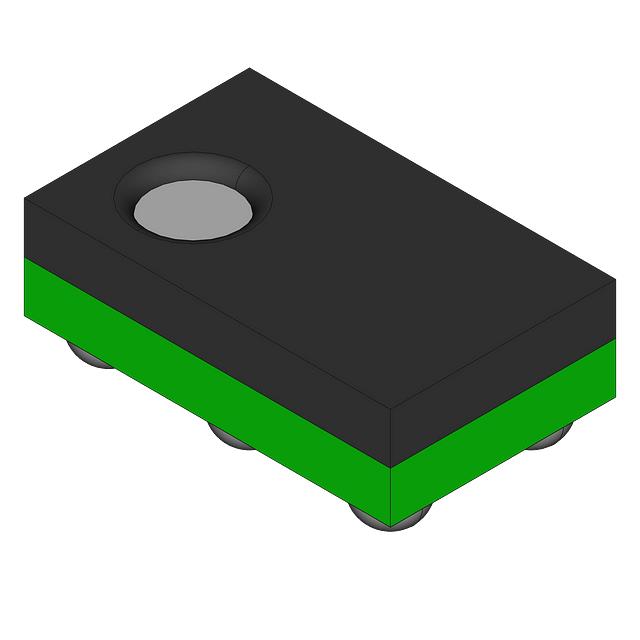

Image shown is a representation only
Manufacturer
Manufacturer No
IP4387CX4/P,315
Package
4-WFBGA, WLCSP
Packaging
Bulk
Description
TVS DIODE 8VWM 13VC 4WLCSP
Detailed Description
13V Clamp 33A (8/20µs) Ipp Tvs Diode Surface Mount 4-WLCSP (0.76x0.76)
DataSheet
Mfr
Nexperia USA Inc.
Type
Zener
Packaging
Bulk
Part Status
Obsolete
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
4-WFBGA, WLCSP
Operating Temperature
-35°C ~ 85°C (TA)
Power Line Protection
No
Capacitance @ Frequency
290pF @ 1MHz
Supplier Device Package
4-WLCSP (0.76x0.76)
Unidirectional Channels
1
Voltage - Breakdown (Min)
10V
Voltage - Clamping (Max) @ Ipp
13V
Voltage - Reverse Standoff (Typ)
8V (Max)
Current - Peak Pulse (10/1000µs)
33A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| Type | Zener |
| Packaging | Bulk |
| Part Status | Obsolete |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 4-WFBGA, WLCSP |
| Operating Temperature | -35°C ~ 85°C (TA) |
| Power Line Protection | No |
| Capacitance @ Frequency | 290pF @ 1MHz |
| Supplier Device Package | 4-WLCSP (0.76x0.76) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 10V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Voltage - Reverse Standoff (Typ) | 8V (Max) |
| Current - Peak Pulse (10/1000µs) | 33A (8/20µs) |
