Nexperia USA Inc. IP3253CZ16-8-TTL,1

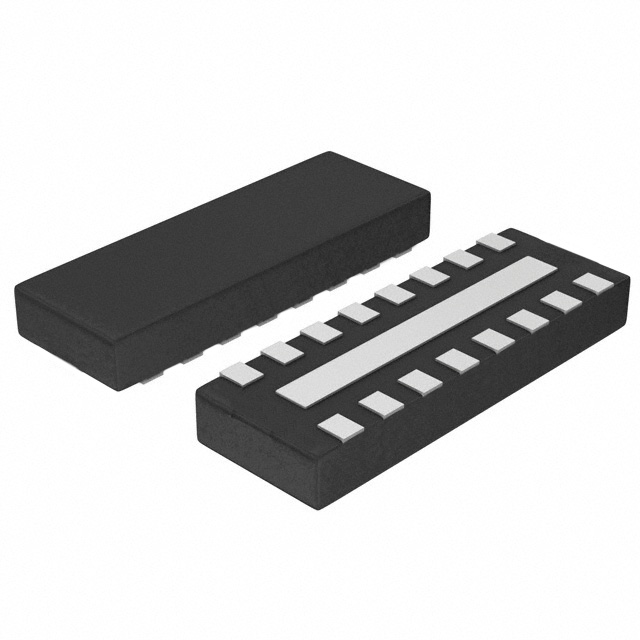

Image shown is a representation only
Manufacturer
Manufacturer No
IP3253CZ16-8-TTL,1
Package
16-UFDFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
FILTER LC(PI) 18NH/25PF ESD SMD
Detailed Description
LC (Pi) EMI Filter 3rd Order Low Pass 8 Channel L = 18nH (Total), C = 25pF (Total) 30 mA 16-UFDFN Exposed Pad
DataSheet
Type
Low Pass
Height
0.022" (0.55mm)
Values
L = 18nH (Total), C = 25pF (Total)
Current
30 mA
Packaging
Tape & Reel (TR)
Technology
LC (Pi)
Part Status
Obsolete
Applications
GSM, LAN, PCS, WAN
Filter Order
3rd
Manufacturer
Nexperia USA Inc.
Mounting Type
Surface Mount
ESD Protection
Yes
Package / Case
16-UFDFN Exposed Pad
Size / Dimension
0.130" L x 0.053" W (3.30mm x 1.35mm)
Attenuation Value
30dB @ 1GHz ~ 4GHz
Number of Channels
8
Operating Temperature
-40°C ~ 85°C
Center / Cutoff Frequency
175MHz (Cutoff)
Resistance - Channel (Ohms)
8
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.022" (0.55mm) |
| Values | L = 18nH (Total), C = 25pF (Total) |
| Current | 30 mA |
| Packaging | Tape & Reel (TR) |
| Technology | LC (Pi) |
| Part Status | Obsolete |
| Applications | GSM, LAN, PCS, WAN |
| Filter Order | 3rd |
| Manufacturer | Nexperia USA Inc. |
| Mounting Type | Surface Mount |
| ESD Protection | Yes |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Attenuation Value | 30dB @ 1GHz ~ 4GHz |
| Number of Channels | 8 |
| Operating Temperature | -40°C ~ 85°C |
| Center / Cutoff Frequency | 175MHz (Cutoff) |
| Resistance - Channel (Ohms) | 8 |
