Step1: Product
Nexperia USA Inc. 74HC86D,653

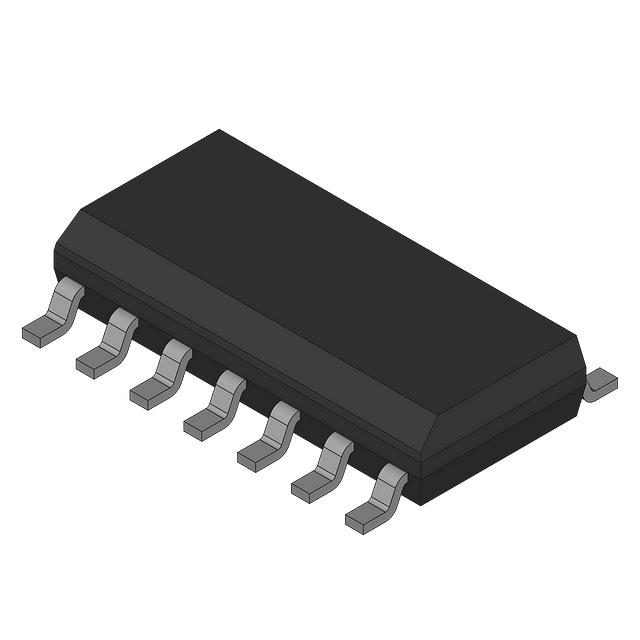

Image shown is a representation only
Manufacturer
Manufacturer No
74HC86D,653
Quantity
32,855
Availability
In Stock
Package
14-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC GATE XOR 4CH 2-INP 14SO
Detailed Description
XOR (Exclusive OR) IC 4 Channel 14-SO
Datasheet
Mfr
Nexperia USA Inc.
Series
74HC
Packaging
Tape & Reel (TR); Cut Tape (CT)
Logic Type
XOR (Exclusive OR)
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.154", 3.90mm Width)
Number of Inputs
2
Voltage - Supply
2V ~ 6V
Number of Circuits
4
Base Product Number
74HC86
Operating Temperature
-40°C ~ 125°C
Input Logic Level - Low
0.5V ~ 1.8V
Supplier Device Package
14-SO
Input Logic Level - High
1.5V ~ 4.2V
Current - Quiescent (Max)
2 µA
Current - Output High, Low
5.2mA, 5.2mA
Max Propagation Delay @ V, Max CL
20ns @ 6V, 50pF
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| Series | 74HC |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Logic Type | XOR (Exclusive OR) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Number of Inputs | 2 |
| Voltage - Supply | 2V ~ 6V |
| Number of Circuits | 4 |
| Base Product Number | 74HC86 |
| Operating Temperature | -40°C ~ 125°C |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Supplier Device Package | 14-SO |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Max Propagation Delay @ V, Max CL | 20ns @ 6V, 50pF |
