Step1: Product

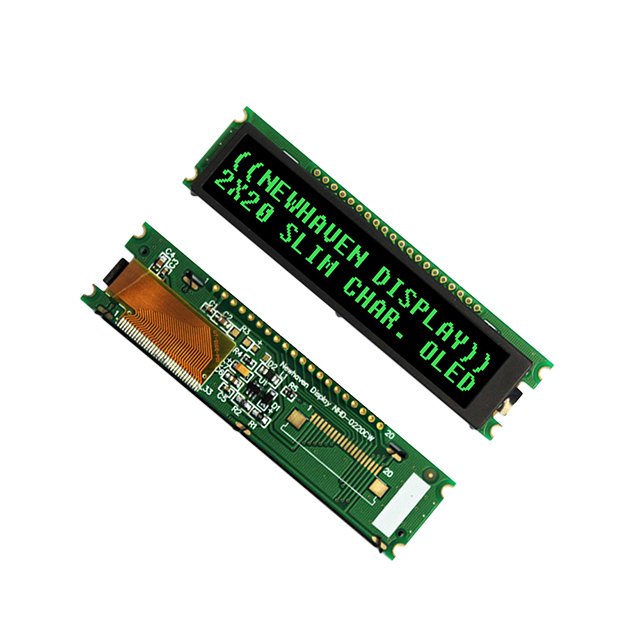

Newhaven Display Intl NHD-0220CW-AG3
Image shown is a representation only
Manufacturer
Manufacturer No
NHD-0220CW-AG3
Packaging
Bulk
Description
OLED MODULE 40DIG 20 X 2 PASSIVE
Detailed Description
Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit, I2C, SPI 92.00mm x 23.30mm x 2.50mm
DataSheet
Dot Size
0.62mm W x 0.67mm H
Interface
Parallel, 8-Bit, I2C, SPI
Packaging
Bulk
Text Color
Green
Part Status
Obsolete
Display Mode
Passive
Display Type
OLED
Manufacturer
Newhaven Display Intl
Viewing Area
77.92mm L x 16.28mm W
Character Size
5.57mm H x 3.22mm W
Display Format
20 x 2
Controller Type
US2066
Background Color
Black
Character Format
5 x 8 Dots
Voltage - Supply
2.4V ~ 5.5V
Outline L x W x H
92.00mm x 23.30mm x 2.50mm
Base Product Number
NHD-0220
Number of Characters
40.0
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Dot Size | 0.62mm W x 0.67mm H |
| Interface | Parallel, 8-Bit, I2C, SPI |
| Packaging | Bulk |
| Text Color | Green |
| Part Status | Obsolete |
| Display Mode | Passive |
| Display Type | OLED |
| Manufacturer | Newhaven Display Intl |
| Viewing Area | 77.92mm L x 16.28mm W |
| Character Size | 5.57mm H x 3.22mm W |
| Display Format | 20 x 2 |
| Controller Type | US2066 |
| Background Color | Black |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 2.4V ~ 5.5V |
| Outline L x W x H | 92.00mm x 23.30mm x 2.50mm |
| Base Product Number | NHD-0220 |
| Number of Characters | 40.0 |
| Operating Temperature | -40°C ~ 85°C |
