Step1: Product
Newava Technology Inc. S34603

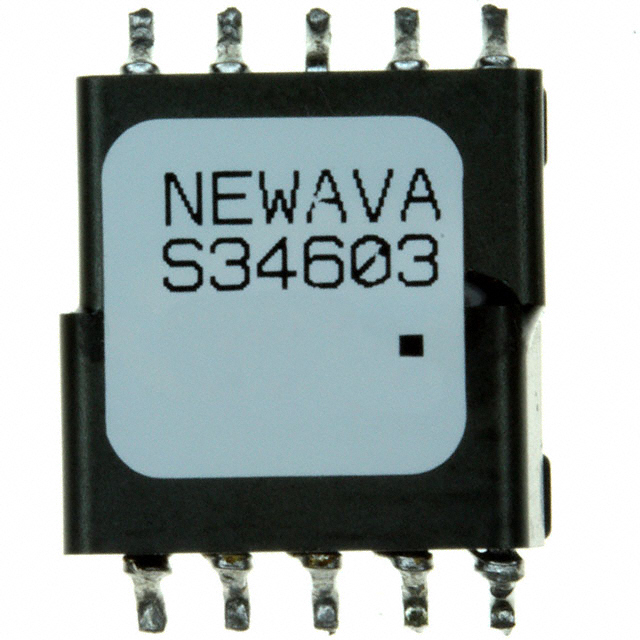

Image shown is a representation only
Manufacturer
Manufacturer No
S34603
Package
Nonstandard
Packaging
Bulk
Description
FIXED IND 47UH 2.25A 35 MOHM SMD
Detailed Description
47 µH Unshielded Inductor 2.25 A 35mOhm Max Nonstandard
Mfr
Newava Technology Inc.
Packaging
Bulk
Shielding
Unshielded
Inductance
47 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.560" L x 0.560" W (14.22mm x 14.22mm)
DC Resistance (DCR)
35mOhm Max
Current Rating (Amps)
2.25 A
Height - Seated (Max)
0.500" (12.70mm)
Operating Temperature
-45°C ~ 250°C
Frequency - Self Resonant
2MHz
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Newava Technology Inc. |
| Packaging | Bulk |
| Shielding | Unshielded |
| Inductance | 47 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.560" L x 0.560" W (14.22mm x 14.22mm) |
| DC Resistance (DCR) | 35mOhm Max |
| Current Rating (Amps) | 2.25 A |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Operating Temperature | -45°C ~ 250°C |
| Frequency - Self Resonant | 2MHz |
| Inductance Frequency - Test | 10 kHz |
