Step1: Product
Neutrik Americas, Inc. NC3FXX-B

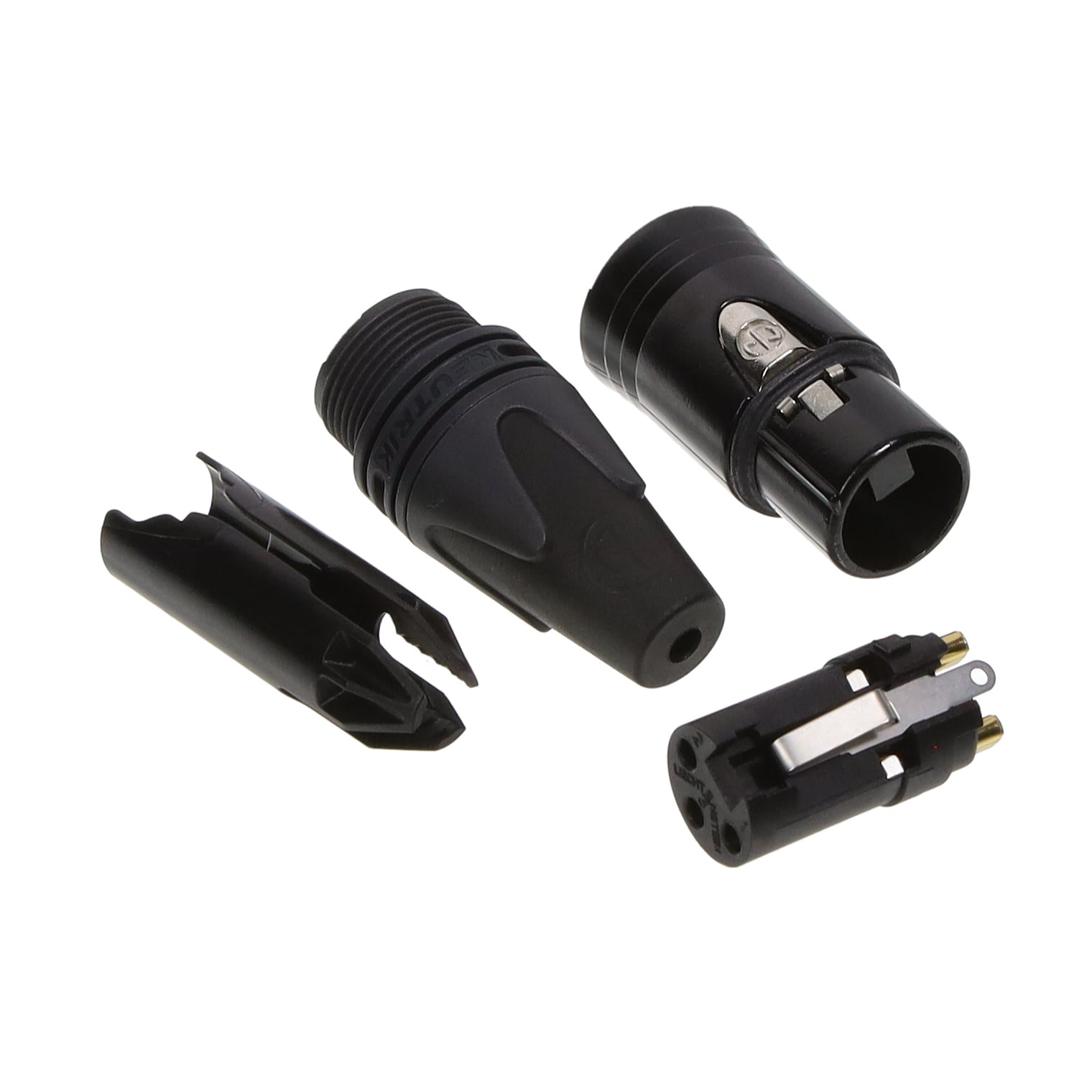

Image shown is a representation only
Manufacturer
Manufacturer No
NC3FXX-B
Quantity
16
Availability
In Stock
Packaging
Box
Description
CABLE END XX SERIES 3 PIN FEMALE
Detailed Description
3 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Neutrik Americas, Inc.
Color
Silver
Features
Backshell
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Shell Finish
Nickel
Cable Opening
0.138" ~ 0.315" (3.50mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Latch Lock
Shell Material
Zinc Die Cast
Voltage Rating
50V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Bronze
Primary Material
Metal
Ingress Protection
IP40
Number of Positions
3
Shell Size - Insert
XLR
Current Rating (Amps)
16A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA66), Nylon 6/6
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
7.87µin (0.200µm)
| Attribute | Value |
|---|---|
| Mfr | Neutrik Americas, Inc. |
| Color | Silver |
| Features | Backshell |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Cable Opening | 0.138" ~ 0.315" (3.50mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Latch Lock |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 50V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Bronze |
| Primary Material | Metal |
| Ingress Protection | IP40 |
| Number of Positions | 3 |
| Shell Size - Insert | XLR |
| Current Rating (Amps) | 16A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 7.87µin (0.200µm) |
