Step1: Product

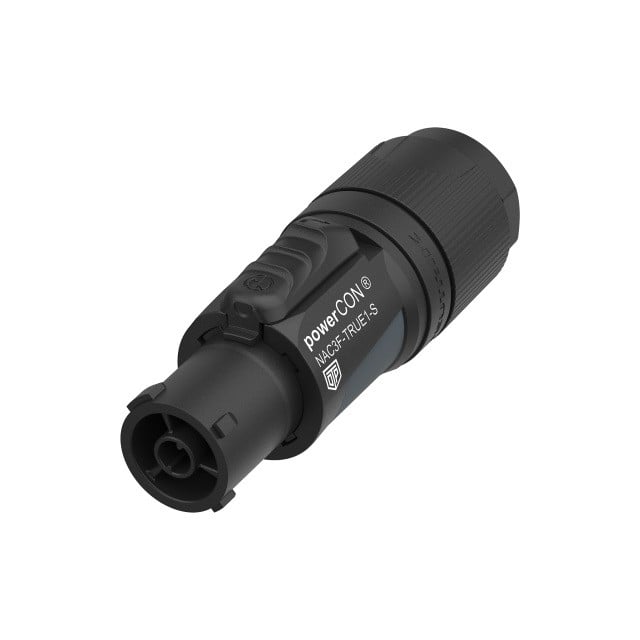

Neutrik Americas, Inc. NAC3F-TRUE1-S
Image shown is a representation only
Manufacturer
Manufacturer No
NAC3F-TRUE1-S
Packaging
Box
Description
CABLE END - POWERCON TRUE1 - FEM
Detailed Description
3 (2 + PE) Position Circular Connector Plug, Male Pins Crimp
Datasheet
Mfr
Neutrik Americas, Inc.
Color
Black
Series
powerCON® TRUE1
Features
Backshell
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Cable Opening
0.236" ~ 0.472" (6.00mm ~ 12.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Latch Lock
Shell Material
Polyamide (PA66), Nylon 6/6
Voltage Rating
250VAC
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Number of Positions
3 (2 + PE)
Current Rating (Amps)
20A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Polyamide (PA66), Nylon 6/6
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
78.7µin (2.00µm)
| Attribute | Value |
|---|---|
| Mfr | Neutrik Americas, Inc. |
| Color | Black |
| Series | powerCON® TRUE1 |
| Features | Backshell |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Cable Opening | 0.236" ~ 0.472" (6.00mm ~ 12.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Latch Lock |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Voltage Rating | 250VAC |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 3 (2 + PE) |
| Current Rating (Amps) | 20A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
