Step1: Product
NetPower NAT1000N20R05

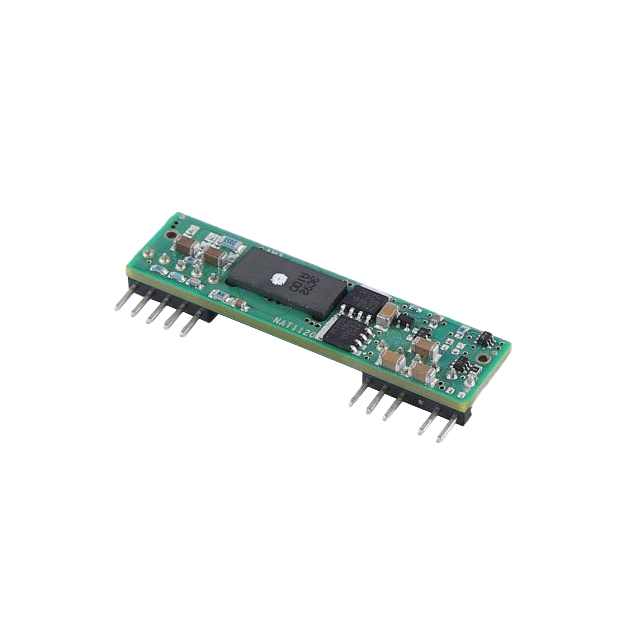

Image shown is a representation only
Manufacturer
Manufacturer No
NAT1000N20R05
Package
10-SIP Module
Packaging
Tray
Description
DC DC CONVERTER 0.75-5.5V
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 20A 8.5V - 18V Input
DataSheet
Mfr
NetPower
Type
Non-Isolated PoL Module
Series
NAT
Features
Adjustable Output, Remote On/Off, Remote Sense
Packaging
Tray
Efficiency
91%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Package / Case
10-SIP Module
Approval Agency
cURus
Control Features
Enable, Active Low
Size / Dimension
2.00" L x 0.25" W x 0.50" H (50.8mm x 6.4mm x 12.7mm)
Number of Outputs
1
Voltage - Output 1
0.75 ~ 5.5V
Base Product Number
NAT1000
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
18V
Voltage - Input (Min)
8.5V
Current - Output (Max)
20A
| Attribute | Value |
|---|---|
| Mfr | NetPower |
| Type | Non-Isolated PoL Module |
| Series | NAT |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Packaging | Tray |
| Efficiency | 91% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP Module |
| Approval Agency | cURus |
| Control Features | Enable, Active Low |
| Size / Dimension | 2.00" L x 0.25" W x 0.50" H (50.8mm x 6.4mm x 12.7mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.75 ~ 5.5V |
| Base Product Number | NAT1000 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 18V |
| Voltage - Input (Min) | 8.5V |
| Current - Output (Max) | 20A |
