NEC Corporation 2SJ606-ZK-E1-AY

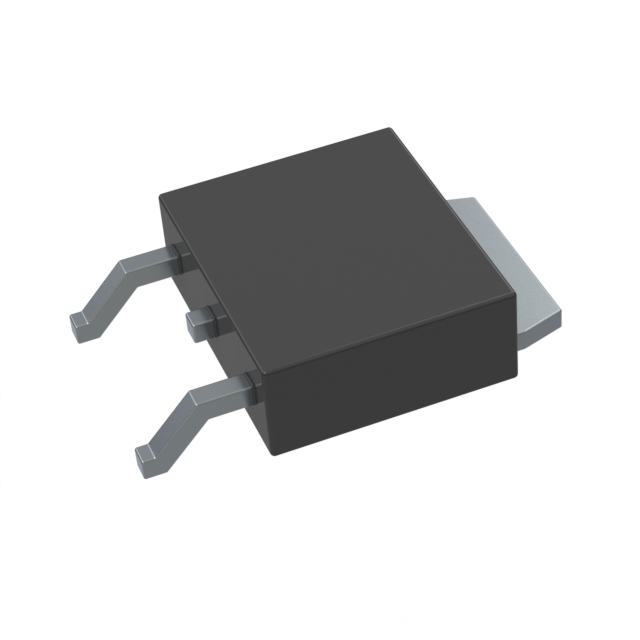

Image shown is a representation only
Manufacturer
Manufacturer No
2SJ606-ZK-E1-AY
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Bulk
Description
P-CHANNEL SWITCHING POWER MOSFET
Detailed Description
P-Channel 60 V 83A 120W Surface Mount TO-220SMD
DataSheet
Mfr
NEC Corporation
FET Type
P-Channel
Packaging
Bulk
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Vgs(th) (Max) @ Id
2.5V @ 1mA
Operating Temperature
150°C (TJ)
Rds On (Max) @ Id, Vgs
15mOhm @ 42A, 10V
Power Dissipation (Max)
120W
Supplier Device Package
TO-220SMD
Gate Charge (Qg) (Max) @ Vgs
120 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
4800 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
83A
| Attribute | Value |
|---|---|
| Mfr | NEC Corporation |
| FET Type | P-Channel |
| Packaging | Bulk |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 42A, 10V |
| Power Dissipation (Max) | 120W |
| Supplier Device Package | TO-220SMD |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4800 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 83A |
