Step1: Product
National Semiconductor LM5034MTC-NS

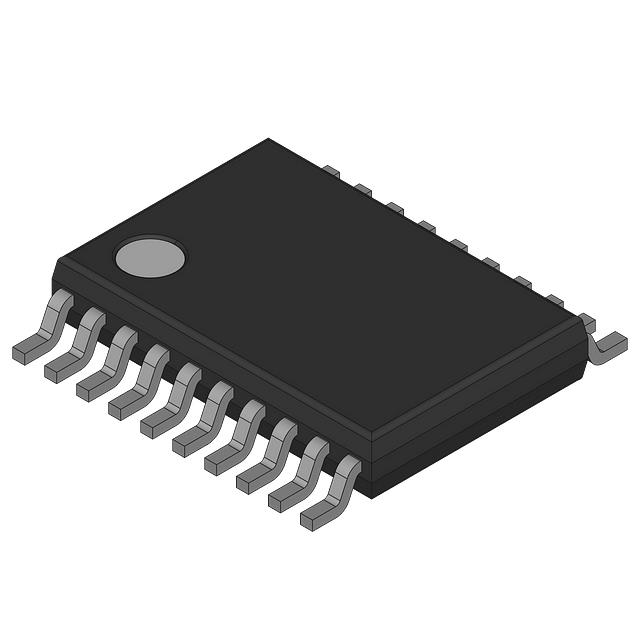

Image shown is a representation only
Manufacturer
Manufacturer No
LM5034MTC-NS
Package
20-TSSOP (0.173", 4.40mm Width)
Packaging
Bulk
Description
SWITCHING CONTROLLER, CURRENT-MO
Detailed Description
Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-TSSOP
DataSheet
Function
Step-Up/Step-Down
Topology
Forward Converter
Packaging
Bulk
Clock Sync
Yes
Output Type
Transistor Driver
Part Status
Active
Manufacturer
National Semiconductor
Mounting Type
Surface Mount
Output Phases
2
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Control Features
Frequency Control, Soft Start
Duty Cycle (Max)
76%
Number of Outputs
2
Base Product Number
LM5034
Output Configuration
Positive, Isolation Capable
Frequency - Switching
200kHz, 600kHz
Operating Temperature
-40°C ~ 125°C (TJ)
Synchronous Rectifier
Yes
Supplier Device Package
20-TSSOP
Voltage - Supply (Vcc/Vdd)
13V ~ 100V
| Attribute | Value |
|---|---|
| Function | Step-Up/Step-Down |
| Topology | Forward Converter |
| Packaging | Bulk |
| Clock Sync | Yes |
| Output Type | Transistor Driver |
| Part Status | Active |
| Manufacturer | National Semiconductor |
| Mounting Type | Surface Mount |
| Output Phases | 2 |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Control Features | Frequency Control, Soft Start |
| Duty Cycle (Max) | 76% |
| Number of Outputs | 2 |
| Base Product Number | LM5034 |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 200kHz, 600kHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 20-TSSOP |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 100V |
