Step1: Product

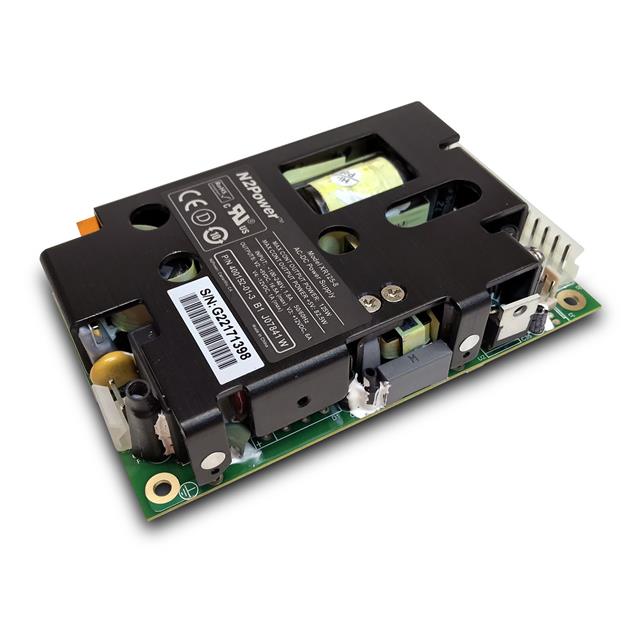

N2Power 400152-01-3
Image shown is a representation only
Manufacturer
Manufacturer No
400152-01-3
Packaging
Bulk
Description
AC/DC CONVERTER 5V 12V -12V 167W
Detailed Description
Open Frame AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
DataSheet
Mfr
N2Power
Type
Open Frame
Series
XR125 (125W)
Features
Load Sharing, PFC, Remote Sense, Standby Output, Universal Input
Packaging
Bulk
Efficiency
91%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Chassis Mount
Power (Watts)
167W
Approval Agency
CE, cURus
Standard Number
60950-1; 62368-1
Voltage - Input
100 ~ 240 VAC
Size / Dimension
5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.6mm)
Number of Outputs
3
Current - Output 1
16.5 A
Current - Output 2
6 A
Current - Output 4
1 A
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Voltage - Isolation
3 kV
Minimum Load Required
No
Operating Temperature
-25°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | N2Power |
| Type | Open Frame |
| Series | XR125 (125W) |
| Features | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input |
| Packaging | Bulk |
| Efficiency | 91% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Chassis Mount |
| Power (Watts) | 167W |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1; 62368-1 |
| Voltage - Input | 100 ~ 240 VAC |
| Size / Dimension | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.6mm) |
| Number of Outputs | 3 |
| Current - Output 1 | 16.5 A |
| Current - Output 2 | 6 A |
| Current - Output 4 | 1 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Isolation | 3 kV |
| Minimum Load Required | No |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
