Step1: Product

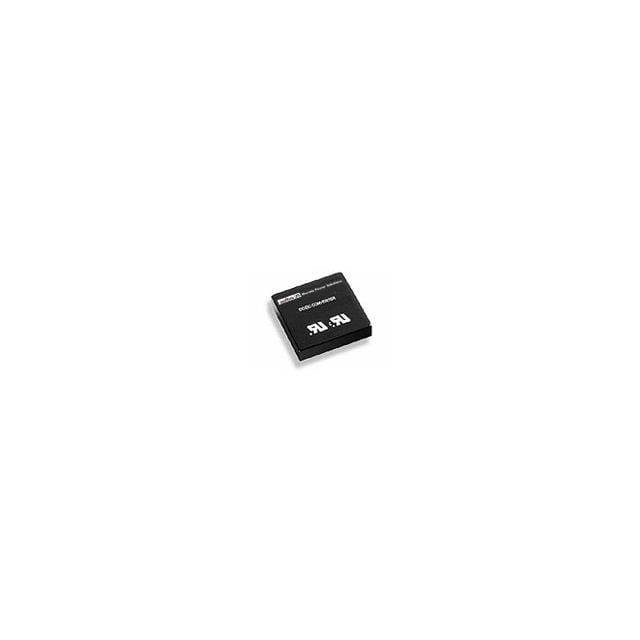

Murata Power Solutions Inc. TWR-5/1000-15/250-D48A-C
Image shown is a representation only
Manufacturer
Manufacturer No
TWR-5/1000-15/250-D48A-C
Package
8-DIP Module, 6 Leads
Packaging
Bulk
Description
DC DC CONVERTER 5V +/-15V 13W
Detailed Description
Isolated Module DC DC Converter 3 Output 5V 15V -15V 1A, 250mA, 250mA 18V - 72V Input
Datasheet
Mfr
Murata Power Solutions Inc.
Type
Isolated Module
Series
TWR A (11W)
Packaging
Bulk
Efficiency
80%
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
13 W
Package / Case
8-DIP Module, 6 Leads
Size / Dimension
2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm)
Number of Outputs
3
Voltage - Output 1
5V
Voltage - Output 2
15V
Voltage - Output 3
-15V
Base Product Number
TWR-5
Voltage - Isolation
1.5 kV
Operating Temperature
-40°C ~ 100°C (With Derating)
Voltage - Input (Max)
72V
Voltage - Input (Min)
18V
Current - Output (Max)
1A, 250mA, 250mA
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Isolated Module |
| Series | TWR A (11W) |
| Packaging | Bulk |
| Efficiency | 80% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 13 W |
| Package / Case | 8-DIP Module, 6 Leads |
| Size / Dimension | 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm) |
| Number of Outputs | 3 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Base Product Number | TWR-5 |
| Voltage - Isolation | 1.5 kV |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Voltage - Input (Max) | 72V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 1A, 250mA, 250mA |
