Step1: Product
Murata Power Solutions Inc. NXJ1S0505T6MC-R7

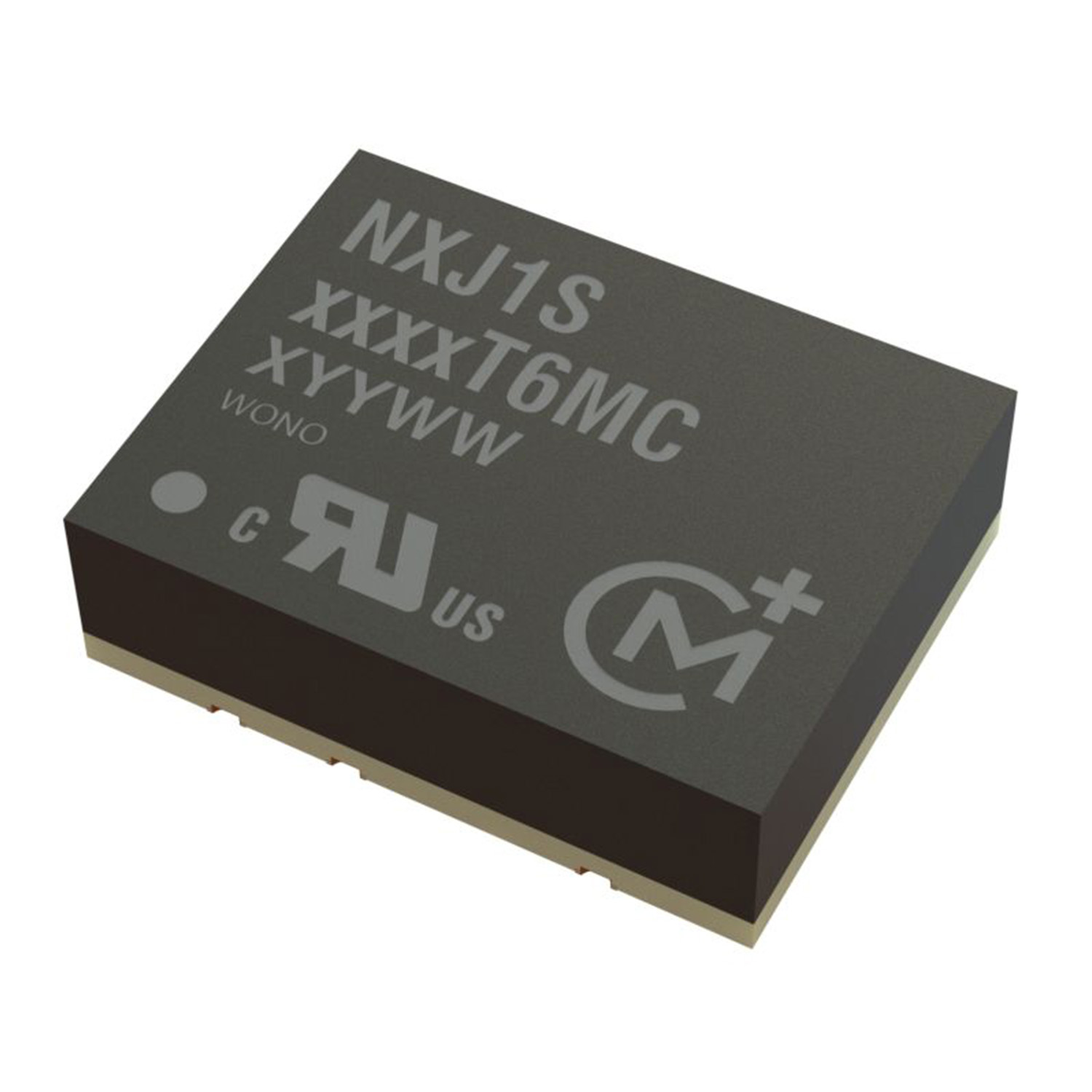

Image shown is a representation only
Manufacturer
Manufacturer No
NXJ1S0505T6MC-R7
Package
14-SMD Module, 6 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DC DC CONVERTER 5V 1W
Detailed Description
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
Mfr
Murata Power Solutions Inc.
Type
Isolated Module
Series
NXJ1T (1W)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Efficiency
76%
Applications
ITE (Commercial), Medical
Mounting Type
Surface Mount
Power (Watts)
1 W
Package / Case
14-SMD Module, 6 Leads
Approval Agency
cURus
Standard Number
60601-1; 62368-1
Size / Dimension
0.54" L x 0.42" W x 0.16" H (13.7mm x 10.6mm x 4.0mm)
Number of Outputs
1
Voltage - Output 1
5V
Voltage - Isolation
4.2 kV
Operating Temperature
-40°C ~ 125°C (With Derating)
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
4.5V
Current - Output (Max)
200mA
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Isolated Module |
| Series | NXJ1T (1W) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Efficiency | 76% |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Surface Mount |
| Power (Watts) | 1 W |
| Package / Case | 14-SMD Module, 6 Leads |
| Approval Agency | cURus |
| Standard Number | 60601-1; 62368-1 |
| Size / Dimension | 0.54" L x 0.42" W x 0.16" H (13.7mm x 10.6mm x 4.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Voltage - Isolation | 4.2 kV |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 200mA |
