Step1: Product
Murata Power Solutions Inc. MYSGK02506BRSR

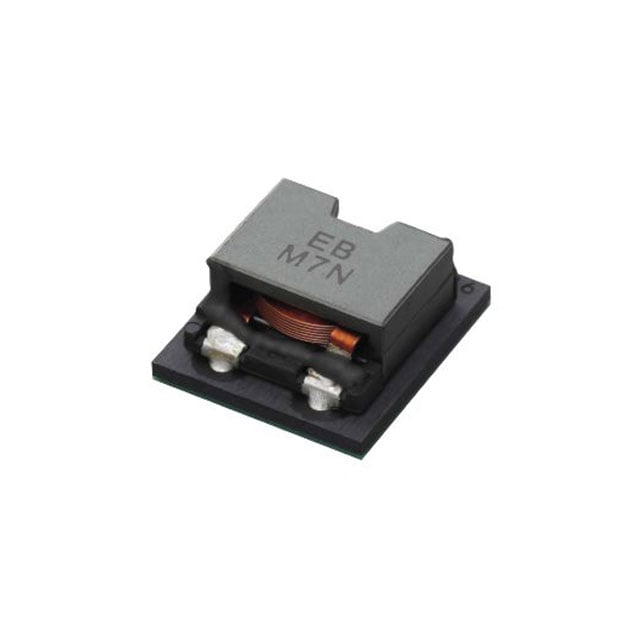

Image shown is a representation only
Manufacturer
Manufacturer No
MYSGK02506BRSR
Quantity
22
Availability
In Stock
Package
20-BLGA Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DC DC CONVERTER 5-25V 150W
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 25V 6A 13.5V - 42V Input
DataSheet
Mfr
Murata Power Solutions Inc.
Type
Non-Isolated PoL Module
Series
SGK
Features
Remote On/Off, SCP, UVLO
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Efficiency
98%
Part Status
Active
Mounting Type
Surface Mount
Power (Watts)
150 W
Package / Case
20-BLGA Module
Size / Dimension
0.64" L x 0.58" W x 0.30" H (16.3mm x 14.7mm x 7.5mm)
Number of Outputs
1
Voltage - Output 1
5 ~ 25V
Base Product Number
MYSGK025
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
42V
Voltage - Input (Min)
13.5V
Current - Output (Max)
6A
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Non-Isolated PoL Module |
| Series | SGK |
| Features | Remote On/Off, SCP, UVLO |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Efficiency | 98% |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Power (Watts) | 150 W |
| Package / Case | 20-BLGA Module |
| Size / Dimension | 0.64" L x 0.58" W x 0.30" H (16.3mm x 14.7mm x 7.5mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5 ~ 25V |
| Base Product Number | MYSGK025 |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 42V |
| Voltage - Input (Min) | 13.5V |
| Current - Output (Max) | 6A |
