Step1: Product

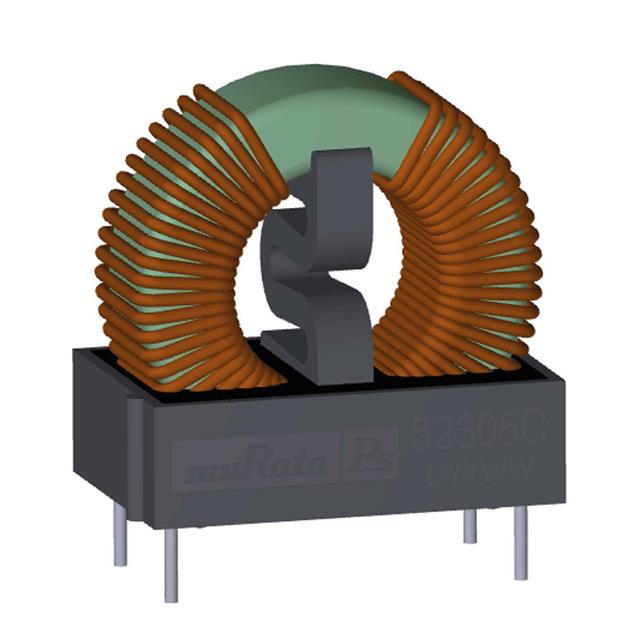

Murata Power Solutions Inc. 52305C
Image shown is a representation only
Manufacturer
Manufacturer No
52305C
Quantity
5
Availability
In Stock
Package
Vertical, 4 PC Pin
Packaging
Tray
Description
CMC 3.5A 2LN TH
Detailed Description
2 Line Common Mode Choke Through Hole 3.5A DCR 45mOhm
DataSheet
Series
5200
Packaging
Tray
Filter Type
Power Line
Part Status
Active
Height (Max)
1.220" (31.00mm)
Manufacturer
Murata Power Solutions Inc.
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
0.945" L x 0.642" W (24.00mm x 16.30mm)
Base Product Number
52
Current Rating (Max)
3.5A
Operating Temperature
-40°C ~ 125°C
DC Resistance (DCR) (Max)
45mOhm
| Attribute | Value |
|---|---|
| Series | 5200 |
| Packaging | Tray |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 1.220" (31.00mm) |
| Manufacturer | Murata Power Solutions Inc. |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 0.945" L x 0.642" W (24.00mm x 16.30mm) |
| Base Product Number | 52 |
| Current Rating (Max) | 3.5A |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) (Max) | 45mOhm |
