Step1: Product

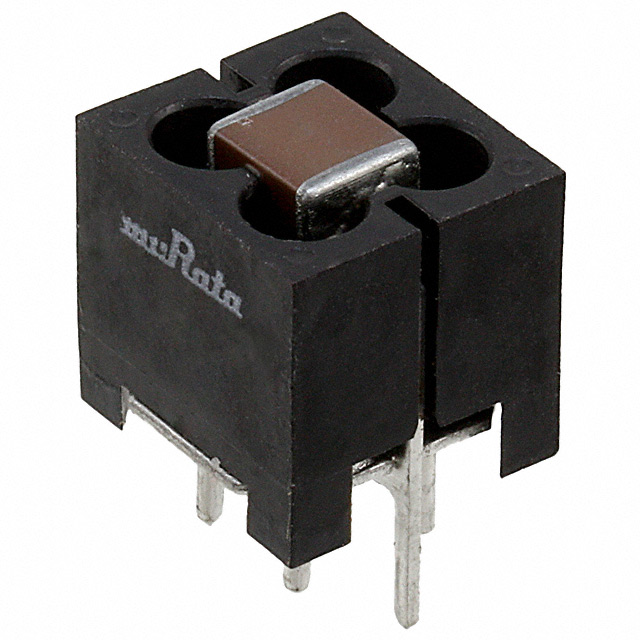

Murata Electronics BNX005-01
Image shown is a representation only
Manufacturer
Manufacturer No
BNX005-01
Package
Block, 4 Lead
Packaging
Bulk
Description
FILTER LC TH
Detailed Description
LC EMI Filter 5th Order Low Pass 2 Channel 15 A Block, 4 Lead
Datasheet
Type
Low Pass
Height
0.531" (13.50mm)
Series
EMIFIL®, BNX
Current
15 A
Packaging
Bulk
Technology
LC
Applications
Data Lines for Mobile Devices
Filter Order
5th
Manufacturer
Murata Electronics
Mounting Type
Through Hole
ESD Protection
No
Package / Case
Block, 4 Lead
Voltage - Rated
50V
Size / Dimension
0.472" L x 0.433" W (12.00mm x 11.00mm)
Attenuation Value
40dB @ 1MHz ~ 1GHz
Number of Channels
2
Base Product Number
BNX0
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.531" (13.50mm) |
| Series | EMIFIL®, BNX |
| Current | 15 A |
| Packaging | Bulk |
| Technology | LC |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 5th |
| Manufacturer | Murata Electronics |
| Mounting Type | Through Hole |
| ESD Protection | No |
| Package / Case | Block, 4 Lead |
| Voltage - Rated | 50V |
| Size / Dimension | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Attenuation Value | 40dB @ 1MHz ~ 1GHz |
| Number of Channels | 2 |
| Base Product Number | BNX0 |
| Operating Temperature | -30°C ~ 85°C |
