Step1: Product
MPD Digital KAD179420

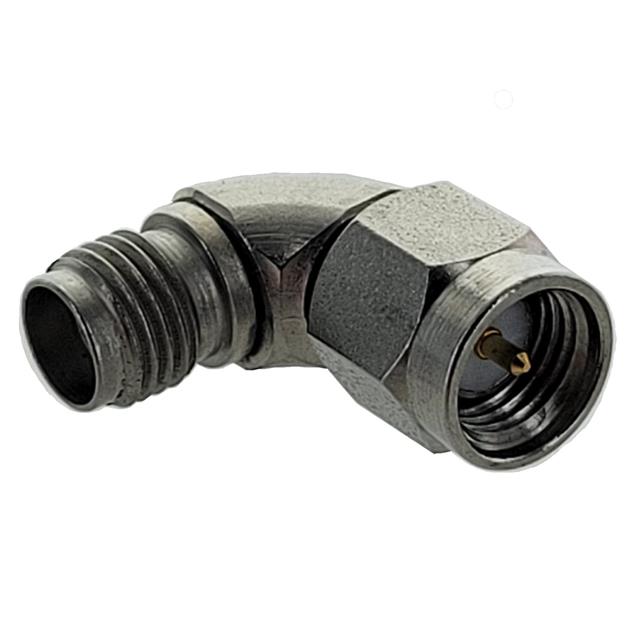

Image shown is a representation only
Manufacturer
Manufacturer No
KAD179420
Packaging
Bulk
Description
COAX ADAPT SMA TO SMA
Detailed Description
Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
DataSheet
Mfr
MPD Digital
Style
Right Angle
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Passivated
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Stainless Steel
Center Gender
Male to Female
Mating Cycles
100
Mounting Type
Free Hanging (In-Line), Right Angle
Adapter Series
SMA to SMA
Fastening Type
Threaded, Threaded
Insertion Loss
0.05dB
Conversion Type
Same Series
Frequency - Max
18 GHz
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMA Jack, Female Socket
Convert From (Adapter End)
SMA Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | MPD Digital |
| Style | Right Angle |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Passivated |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Gender | Male to Female |
| Mating Cycles | 100 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Adapter Series | SMA to SMA |
| Fastening Type | Threaded, Threaded |
| Insertion Loss | 0.05dB |
| Conversion Type | Same Series |
| Frequency - Max | 18 GHz |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | SMA Plug, Male Pin |
