Step1: Product

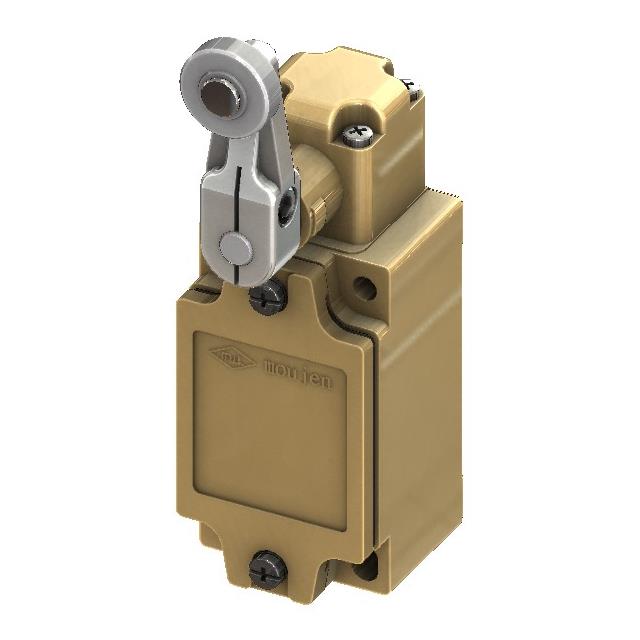

Moujen UL MJ-7204
Image shown is a representation only
Manufacturer
Manufacturer No
UL MJ-7204
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 10A 300V
Detailed Description
Switch SPDT (DB/DM) Chassis Mount
DataSheet
Series
MJ
Circuit
SPDT (DB/DM)
Packaging
Bulk
Pretravel
25° ~ 30°
Overtravel
60°
Part Status
Active
Manufacturer
Moujen
Actuator Type
Side Rotary, Roller
Mounting Type
Chassis Mount
Release Force
50gf
Electrical Life
500,000 Cycles
Mechanical Life
15,000,000 Cycles
Operating Force
900gf
Switch Function
On-Mom
Termination Style
Screw Terminal
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
UL MJ-72
Differential Travel
16°
Voltage Rating - AC
300 V
Voltage Rating - DC
250 V
Current Rating (Amps)
10A (AC), 400mA (DC)
Operating Temperature
-10°C ~ 80°C
| Attribute | Value |
|---|---|
| Series | MJ |
| Circuit | SPDT (DB/DM) |
| Packaging | Bulk |
| Pretravel | 25° ~ 30° |
| Overtravel | 60° |
| Part Status | Active |
| Manufacturer | Moujen |
| Actuator Type | Side Rotary, Roller |
| Mounting Type | Chassis Mount |
| Release Force | 50gf |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 15,000,000 Cycles |
| Operating Force | 900gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | UL MJ-72 |
| Differential Travel | 16° |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 250 V |
| Current Rating (Amps) | 10A (AC), 400mA (DC) |
| Operating Temperature | -10°C ~ 80°C |
