Step1: Product

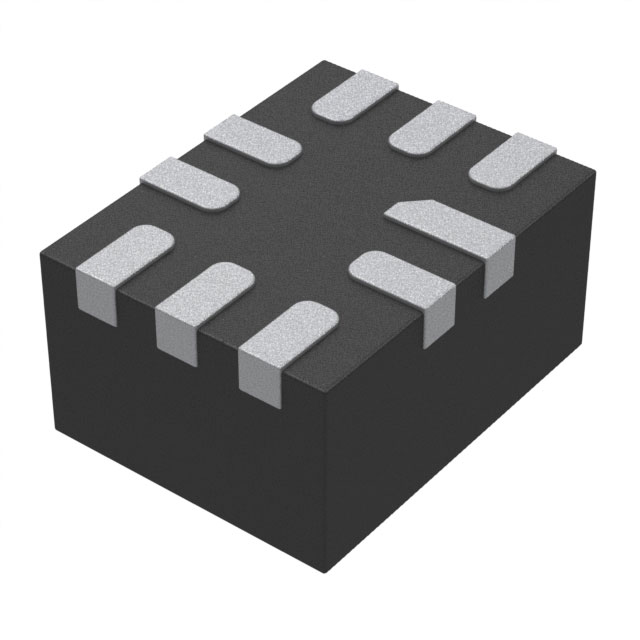

Monolithic Power Systems Inc. MP2736DQG-LF-Z
Image shown is a representation only
Manufacturer
Manufacturer No
MP2736DQG-LF-Z
Package
10-VFQFN
Packaging
Tape & Reel (TR)
Description
IC SWITCH SPDT X 2 450MOHM 10QFN
Detailed Description
2 Circuit IC Switch 2:1 450mOhm 10-QFN (1.4x1.8)
DataSheet
Crosstalk
-70dB @ 100kHz
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
Monolithic Power Systems Inc.
Mounting Type
Surface Mount
-3db Bandwidth
50MHz
Package / Case
10-VFQFN
Switch Circuit
SPDT
Number of Circuits
2
Base Product Number
MP2736
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
10-QFN (1.4x1.8)
On-State Resistance (Max)
450mOhm
Switch Time (Ton, Toff) (Max)
36ns, 30ns
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Current - Leakage (IS(off)) (Max)
40nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
10mOhm
Channel Capacitance (CS(off), CD(off))
55pF
| Attribute | Value |
|---|---|
| Crosstalk | -70dB @ 100kHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | Monolithic Power Systems Inc. |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 50MHz |
| Package / Case | 10-VFQFN |
| Switch Circuit | SPDT |
| Number of Circuits | 2 |
| Base Product Number | MP2736 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 10-QFN (1.4x1.8) |
| On-State Resistance (Max) | 450mOhm |
| Switch Time (Ton, Toff) (Max) | 36ns, 30ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 40nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Channel Capacitance (CS(off), CD(off)) | 55pF |
