Step1: Product

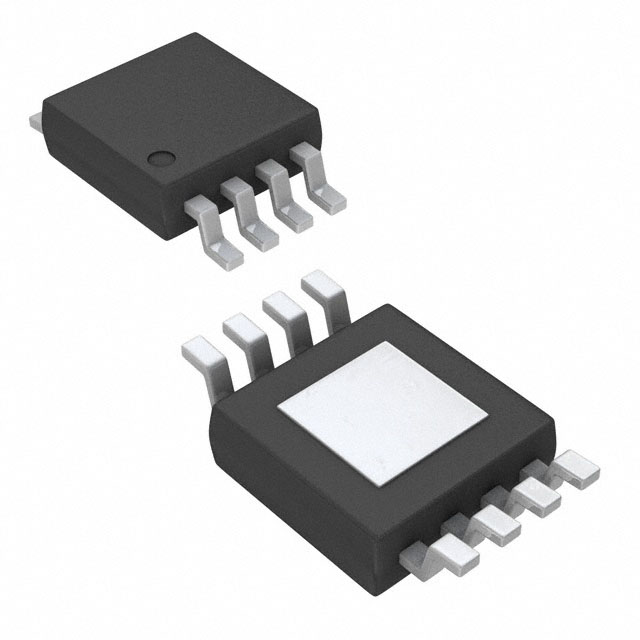

Monolithic Power Systems Inc. MP100GN-P
Image shown is a representation only
Manufacturer
Manufacturer No
MP100GN-P
Package
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Packaging
Tape & Reel (TR)
Description
NRFND:FOR NEW DESIGNS,RECOMMEND
Detailed Description
Converter Offline Inductorless Topology 8-SOIC-EP
DataSheet
Series
MP
Topology
Inductorless
Packaging
Tape & Reel (TR)
Part Status
Not For New Designs
Manufacturer
Monolithic Power Systems Inc.
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Control Features
Power Good, Soft Start
Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit
Output Isolation
Non-Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
700V
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
8-SOIC-EP
Voltage - Supply (Vcc/Vdd)
85V ~ 305V
| Attribute | Value |
|---|---|
| Series | MP |
| Topology | Inductorless |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Manufacturer | Monolithic Power Systems Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Control Features | Power Good, Soft Start |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Supply (Vcc/Vdd) | 85V ~ 305V |
