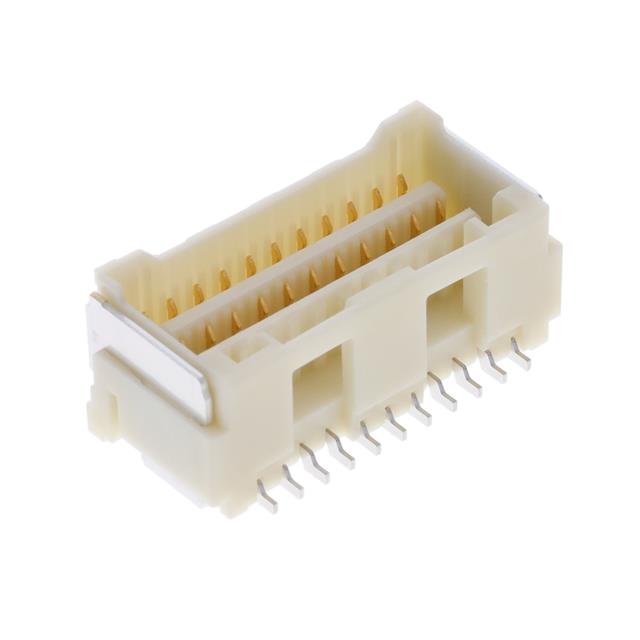

Molex 5054062260
Image shown is a representation only
Manufacturer
Manufacturer No
5054062260
Packaging
Tape & Reel (TR)
Description
CONN RCPT 22POS 0.059 GOLD SMD
Detailed Description
22 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Gold
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
CLIK-Mate 505406
Features
Solder Retention
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical
Contact Type
Forked
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.059" (1.50mm)
Contact Material
Copper Alloy
Insulation Color
Beige
Insulation Height
0.344" (8.75mm)
Base Product Number
505406
Insulation Material
Resin
Number of Positions
22
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | CLIK-Mate 505406 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Forked |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.059" (1.50mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Beige |
| Insulation Height | 0.344" (8.75mm) |
| Base Product Number | 505406 |
| Insulation Material | Resin |
| Number of Positions | 22 |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
