Step1: Product
Molex 5047541160

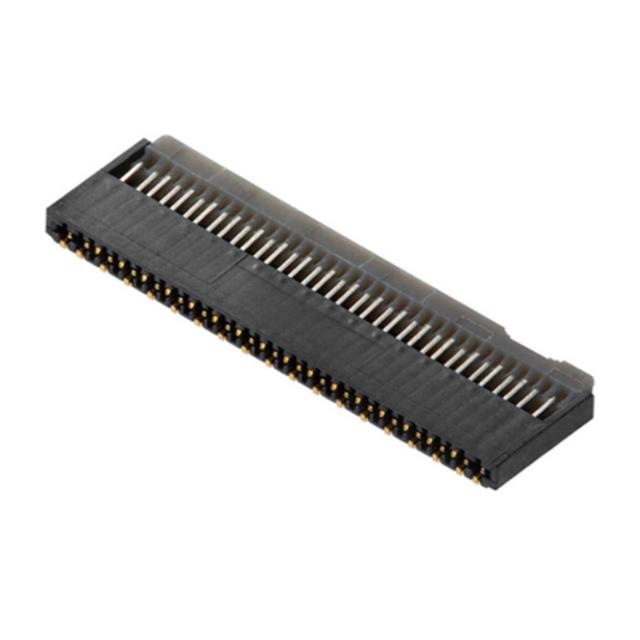

Image shown is a representation only
Manufacturer
Manufacturer No
5047541160
Packaging
Tape & Reel (TR)
Description
0.3 FPC B/F HITEMP 11CKTEMBSTPPK
Detailed Description
11 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
Pitch
0.012" (0.30mm)
Series
BackFlip, Easy-On LA75 504754
Packaging
Tape & Reel (TR)
Termination
Solder
Manufacturer
Molex
Housing Color
Black
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Actuator Color
Natural
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock, Backlock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness
0.20mm
Height Above Board
0.030" (0.75mm)
Base Product Number
504754
Number of Positions
11
Current Rating (Amps)
0.2A
Operating Temperature
-40°C ~ 125°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | BackFlip, Easy-On LA75 504754 |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Black |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Natural |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock, Backlock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.030" (0.75mm) |
| Base Product Number | 504754 |
| Number of Positions | 11 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -40°C ~ 125°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
