Step1: Product
Molex 5039600696

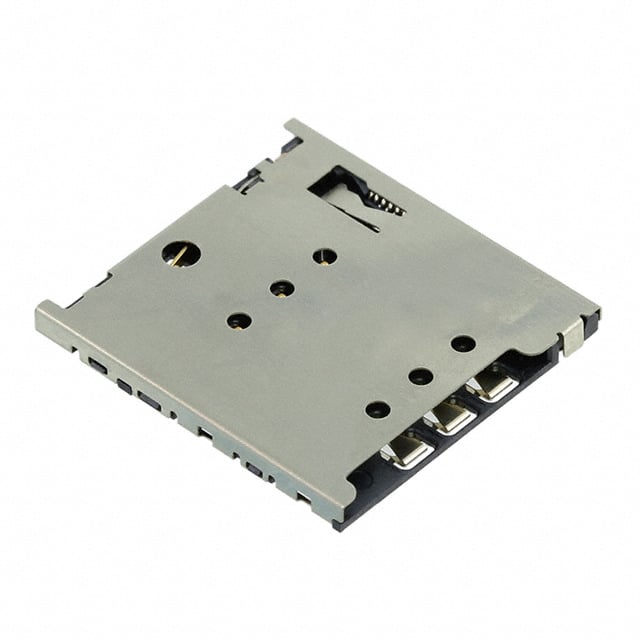

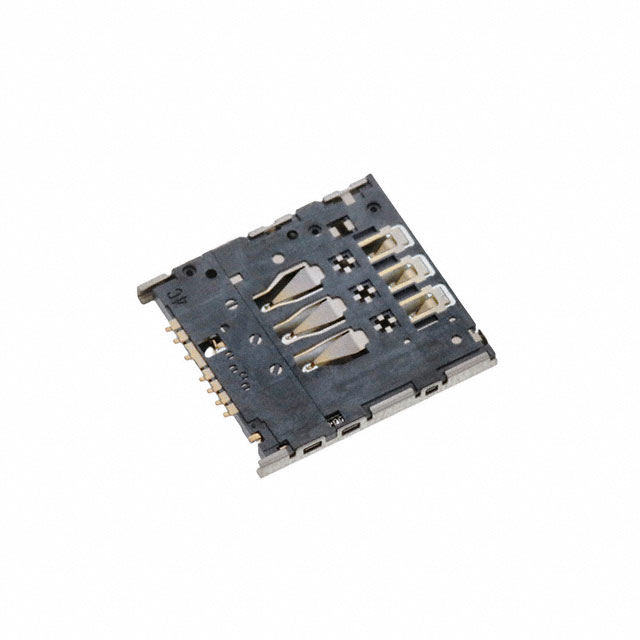

Image shown is a representation only
Manufacturer
Manufacturer No
5039600696
Quantity
6500
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN MICRO SIM CARD R/A SMD
Detailed Description
8 (6 + 2) Position Card Connector Micro SIM Surface Mount, Right Angle Gold
DataSheet
Series
503960
Features
Switch
Card Type
Micro SIM
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Molex
Mounting Type
Surface Mount, Right Angle
Connector Type
Connector and Ejector
Contact Finish
Gold
Mounting Feature
Normal, Standard - Top
Height Above Board
0.056" (1.42mm)
Base Product Number
503960
Number of Positions
8 (6 + 2)
Contact Finish Thickness
20.0µin (0.51µm)
Insertion, Removal Method
Push In, Push Out
| Attribute | Value |
|---|---|
| Series | 503960 |
| Features | Switch |
| Card Type | Micro SIM |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Molex |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Mounting Feature | Normal, Standard - Top |
| Height Above Board | 0.056" (1.42mm) |
| Base Product Number | 503960 |
| Number of Positions | 8 (6 + 2) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Insertion, Removal Method | Push In, Push Out |
