Step1: Product

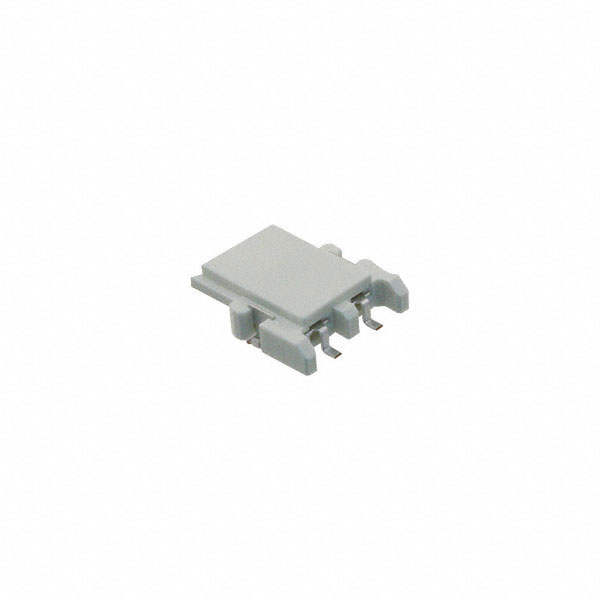

Molex 5034690200
Image shown is a representation only
Manufacturer
Manufacturer No
5034690200
Packaging
Tape & Reel (TR)
Description
CONN SSL PLUG 2POS 3.7MM SOLDER
Detailed Description
SSL Connector 2 Position Plug Board to Board 0.146" (3.70mm) Solder
DataSheet
Pitch
0.146" (3.70mm)
Style
Board to Board
Series
Flexi-Mate 503469
Features
Solder Retention
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Termination
Solder
Manufacturer
Molex
Housing Color
White
Mating Cycles
15
Mounting Type
Surface Mount, Right Angle
Connector Type
Plug
Contact Finish
Tin
Fastening Type
Latch Lock
Voltage Rating
500V
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA), Nylon, Glass Filled
Base Product Number
503469
Number of Positions
2
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 80°C
| Attribute | Value |
|---|---|
| Pitch | 0.146" (3.70mm) |
| Style | Board to Board |
| Series | Flexi-Mate 503469 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | White |
| Mating Cycles | 15 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug |
| Contact Finish | Tin |
| Fastening Type | Latch Lock |
| Voltage Rating | 500V |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Base Product Number | 503469 |
| Number of Positions | 2 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 80°C |
