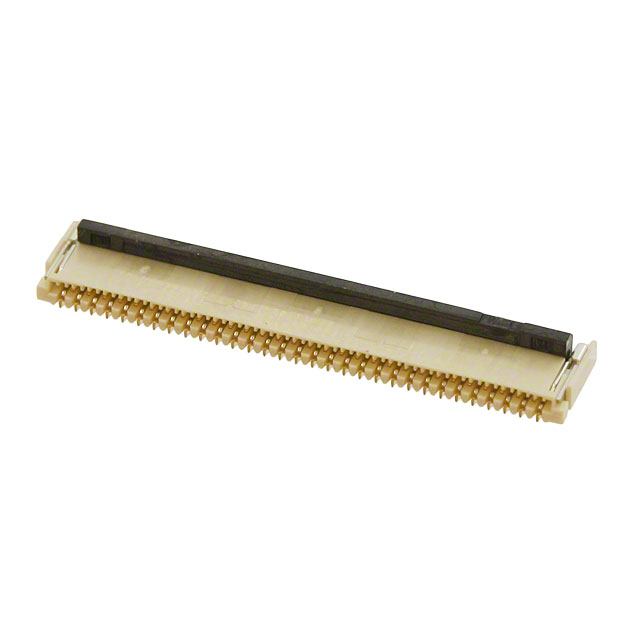

Molex 5034256191
Image shown is a representation only
Manufacturer
Manufacturer No
5034256191
Packaging
Tape & Reel (TR)
Description
CONN FPC 61POS 0.3MM R/A
Detailed Description
61 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
DataSheet
Pitch
0.012" (0.30mm)
Series
BackFlip, Easy-On 503425
Features
Solder Retention
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Termination
Solder
Manufacturer
Molex
Housing Color
White
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Notched
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock, Backlock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyphenylene Sulfide (PPS), Glass Filled
FFC, FCB Thickness
0.20mm
Height Above Board
0.047" (1.20mm)
Base Product Number
503425
Number of Positions
61
Current Rating (Amps)
0.2A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | BackFlip, Easy-On 503425 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | White |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Notched |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock, Backlock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.047" (1.20mm) |
| Base Product Number | 503425 |
| Number of Positions | 61 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
