Step1: Product

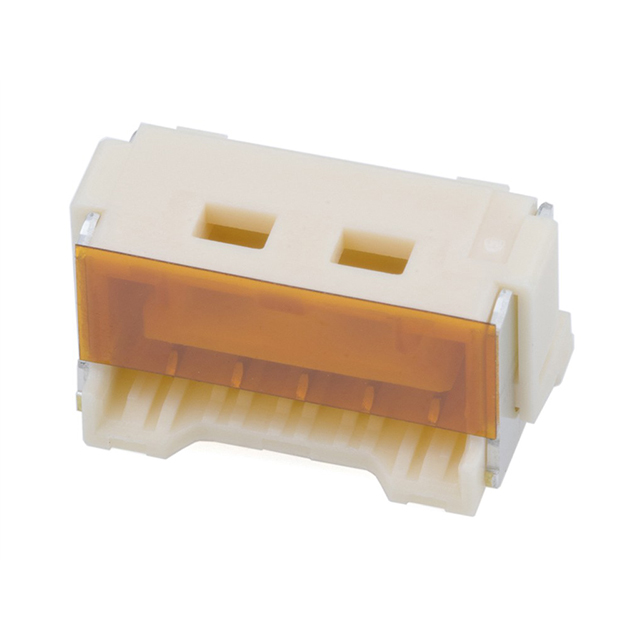

Molex 5024430560
Image shown is a representation only
Manufacturer
Manufacturer No
5024430560
Quantity
7
Availability
In Stock
Packaging
Bulk
Description
CLIKMATE2.0W/B STRECASSY 5CKTEMB
Detailed Description
5 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
CLIK-Mate 502443
Features
Solder Retention
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Forked
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250VAC/DC
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.293" (7.44mm)
Base Product Number
502443
Insulation Material
Polyamide (PA), Nylon
Number of Positions
5
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | CLIK-Mate 502443 |
| Features | Solder Retention |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.293" (7.44mm) |
| Base Product Number | 502443 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 5 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
