Step1: Product

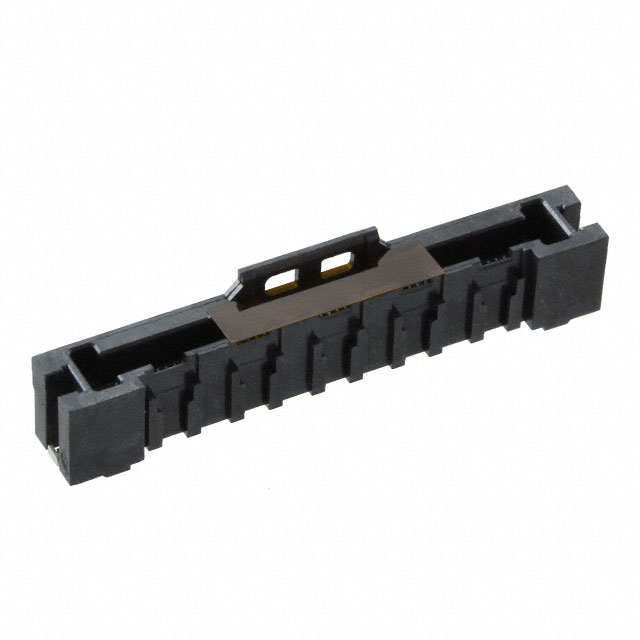

Molex 5017865090
Image shown is a representation only
Manufacturer
Manufacturer No
5017865090
Quantity
37
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC VERT 50POS 0.5MM SMD
Detailed Description
50 Position FFC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
Pitch
0.020" (0.50mm)
Series
Easy-On 501786
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Molex
Housing Color
Black
Mating Cycles
20
Mounting Type
Surface Mount
Cable End Type
Notched
Contact Finish
Gold
Flat Flex Type
FFC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.234" (5.95mm)
Base Product Number
501786
Number of Positions
50
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On 501786 |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Cable End Type | Notched |
| Contact Finish | Gold |
| Flat Flex Type | FFC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.234" (5.95mm) |
| Base Product Number | 501786 |
| Number of Positions | 50 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Material Flammability Rating | UL94 V-0 |
