Step1: Product

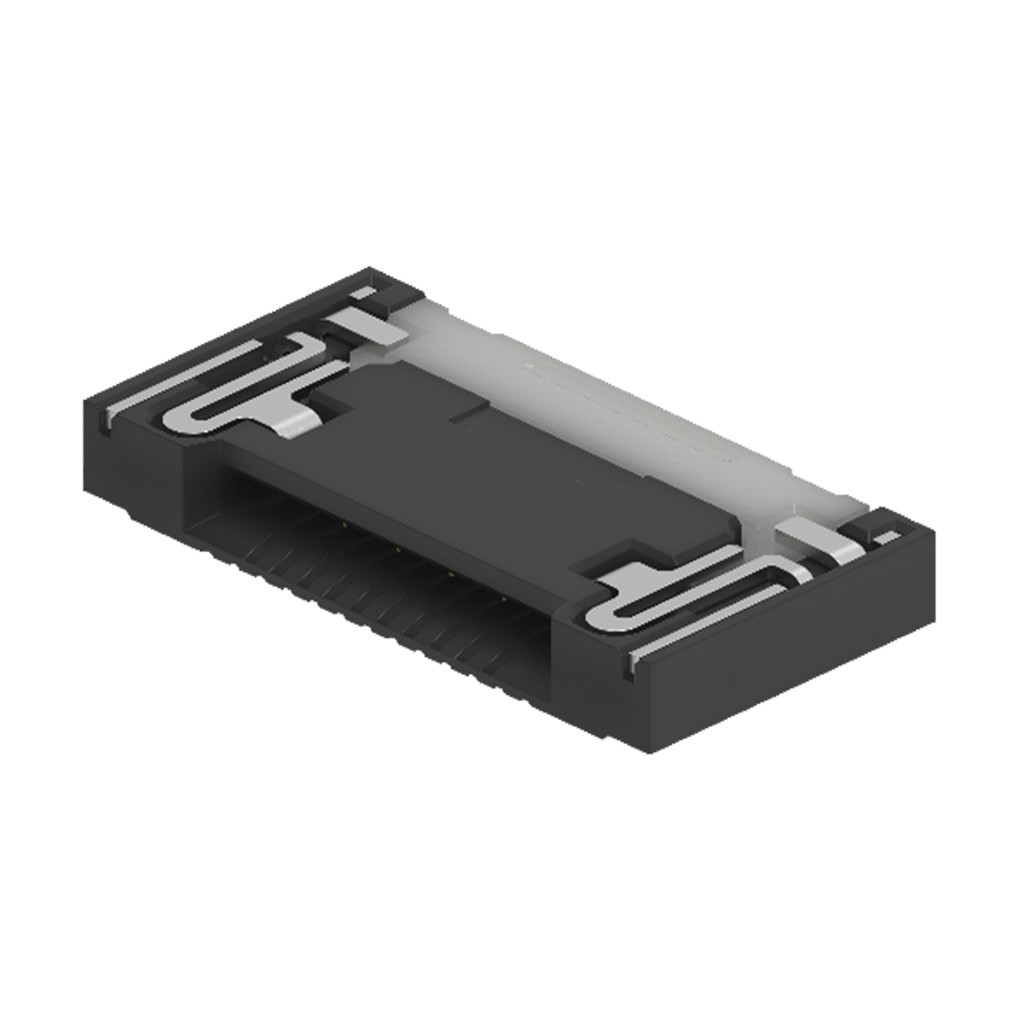

Molex 2250190300
Image shown is a representation only
Manufacturer
Manufacturer No
2250190300
Packaging
Bulk
Description
0.5 FPC ONETOUCH H=1.5 30CKT EMB
Detailed Description
30 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Pitch
0.020" (0.50mm)
Series
Easy-On FlexiSnap-15 225019
Features
Solder Retention
Packaging
Bulk
Termination
Solder
Manufacturer
Molex
Housing Color
Black
Mounting Type
Surface Mount, Right Angle
Actuator Color
Gray
Cable End Type
Notched
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.059" (1.50mm)
Number of Positions
30
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Top and Bottom
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On FlexiSnap-15 225019 |
| Features | Solder Retention |
| Packaging | Bulk |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Gray |
| Cable End Type | Notched |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.059" (1.50mm) |
| Number of Positions | 30 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Material Flammability Rating | UL94 V-0 |
