Step1: Product

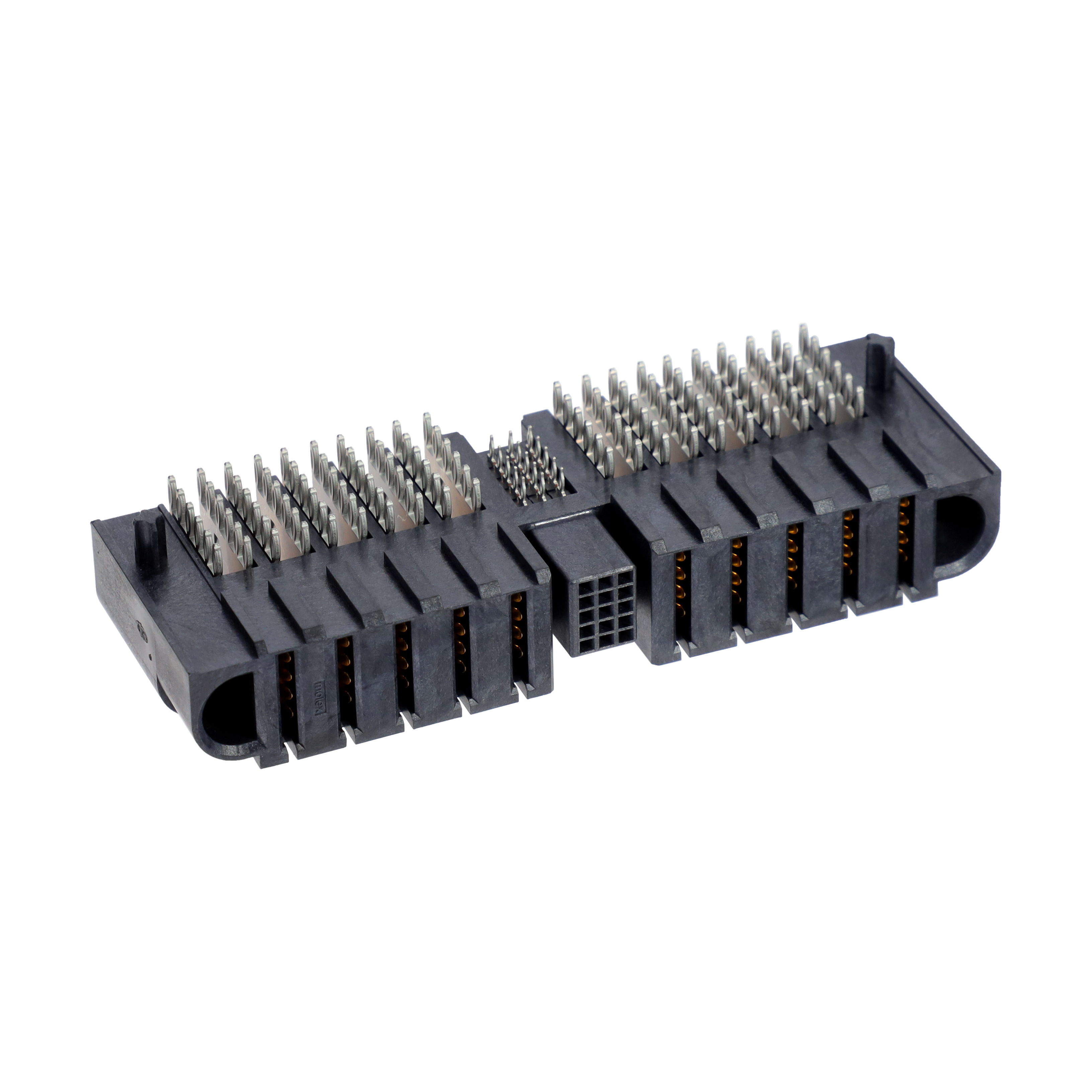

Molex 2195640025
Image shown is a representation only
Manufacturer
Manufacturer No
2195640025
Packaging
Tray
Description
CONN RCPT 25POS R/A PRESS-FIT
Detailed Description
25 Position Receptacle, Female Blade Sockets Connector Press-Fit Through Hole, Right Angle
Datasheet
Color
Black
Series
EXTreme Guardian 219564
Features
Board Guide
Packaging
Tray
Termination
Press-Fit
Manufacturer
Molex
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Blade Sockets
Contact Finish
Gold
Fastening Type
Push-Pull
Number of Rows
5
Contact Material
Copper Alloy
Number of Positions
25
Material - Insulation
Liquid Crystal Polymer (LCP)
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Color | Black |
| Series | EXTreme Guardian 219564 |
| Features | Board Guide |
| Packaging | Tray |
| Termination | Press-Fit |
| Manufacturer | Molex |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Fastening Type | Push-Pull |
| Number of Rows | 5 |
| Contact Material | Copper Alloy |
| Number of Positions | 25 |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
