Step1: Product

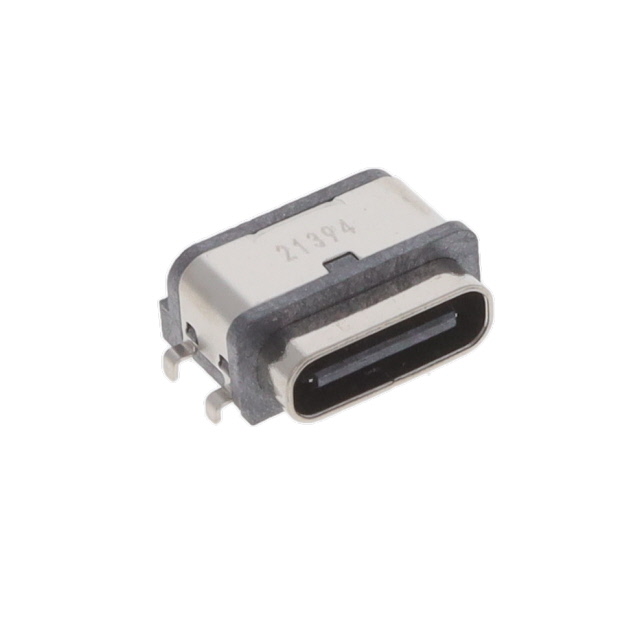

Molex 2171770001
Image shown is a representation only
Manufacturer
Manufacturer No
2171770001
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT TYPE C 24POS SMD RA
Detailed Description
USB-C (USB TYPE-C) Receptacle Connector 24 (6+18 Dummy) - Power Only 6 Pin Position Surface Mount, Right Angle
DataSheet
Gender
Receptacle
Series
217177
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Molex
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Number of Ports
1
Voltage - Rated
30VAC/DC
Mounting Feature
Horizontal, Mid Mount
Ingress Protection
IPX5 - Waterproof
Number of Contacts
24 (6+18 Dummy) - Power Only 6 Pin
Base Product Number
217177
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | 217177 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Molex |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Voltage - Rated | 30VAC/DC |
| Mounting Feature | Horizontal, Mid Mount |
| Ingress Protection | IPX5 - Waterproof |
| Number of Contacts | 24 (6+18 Dummy) - Power Only 6 Pin |
| Base Product Number | 217177 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
