Step1: Product

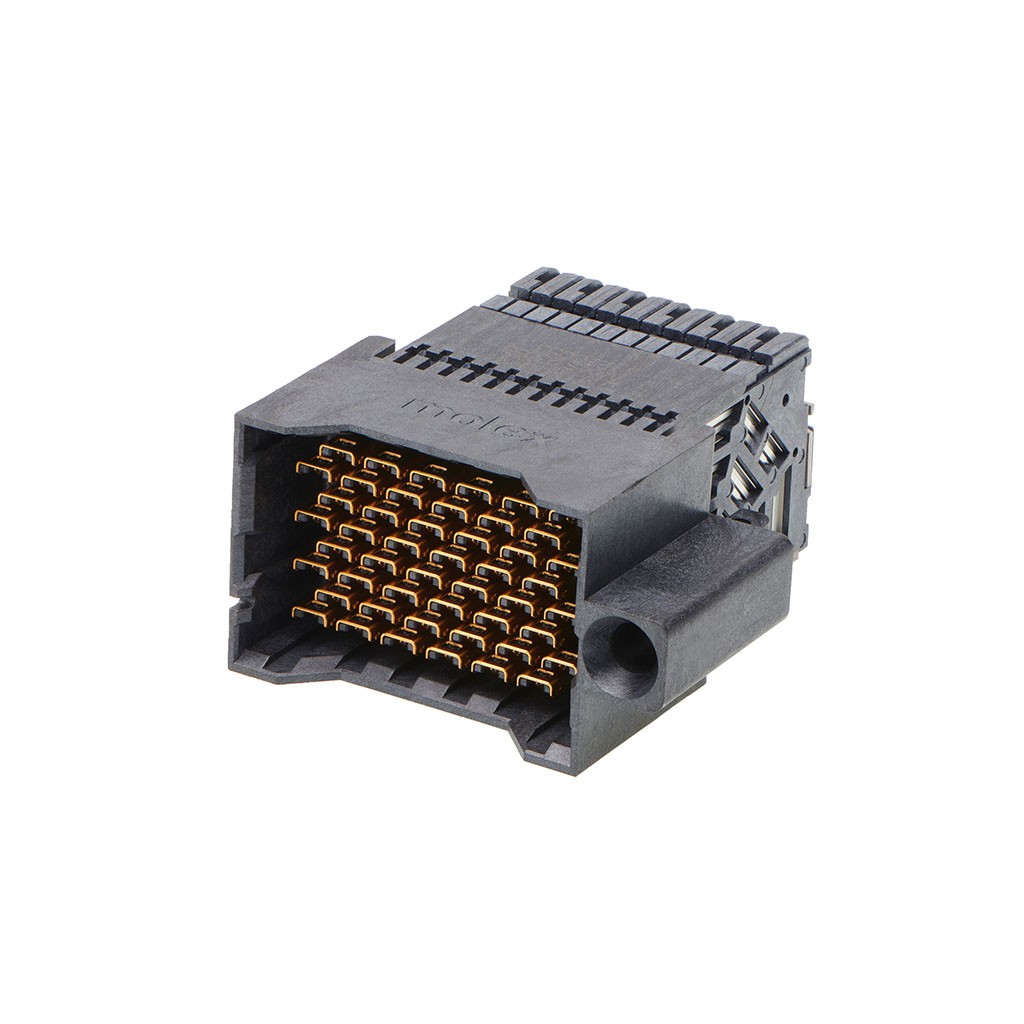

Molex 2111309002
Image shown is a representation only
Manufacturer
Manufacturer No
2111309002
Packaging
Bulk
Description
IMPULSE 4X12 OD RAM OPEN 270 STD
Detailed Description
96 Connector Header, Male Pins Through Hole, Right Angle Black
Datasheet
Color
Black
Pitch
0.079" (2.00mm)
Series
Impulse 211130
Features
Mating Guide
Packaging
Bulk
Termination
Press-Fit
Manufacturer
Molex
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Male Pins
Contact Finish
Gold
Number of Rows
8
Voltage Rating
29.9VAC/DC
Connector Usage
Backplane, Orthogonal
Number of Columns
12
Number of Positions
96
Current Rating (Amps)
0.75A per Contact
Operating Temperature
-55°C ~ 85°C
Contact Layout, Typical
48 Differential Pairs
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.079" (2.00mm) |
| Series | Impulse 211130 |
| Features | Mating Guide |
| Packaging | Bulk |
| Termination | Press-Fit |
| Manufacturer | Molex |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Number of Rows | 8 |
| Voltage Rating | 29.9VAC/DC |
| Connector Usage | Backplane, Orthogonal |
| Number of Columns | 12 |
| Number of Positions | 96 |
| Current Rating (Amps) | 0.75A per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Contact Layout, Typical | 48 Differential Pairs |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
