Step1: Product

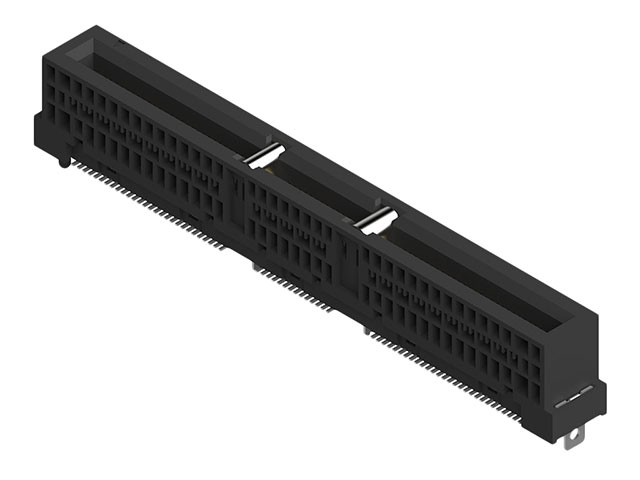

Molex 2066530140
Image shown is a representation only
Manufacturer
Manufacturer No
2066530140
Packaging
Tape & Reel (TR)
Description
CONN EDGE DUAL FML 140POS 0.024
Detailed Description
140 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
DataSheet
Color
Black
Pitch
0.024" (0.60mm)
Gender
Female
Series
206653
Features
Board Guide, Pick and Place, Solder Retention
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Tape & Reel (TR)
Part Status
Active
Termination
Solder
Manufacturer
Molex
Mounting Type
Surface Mount
Card Thickness
0.062" (1.57mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
206653
Number of Positions
140
Material - Insulation
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature
-55°C ~ 85°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
28; 14; 28
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.024" (0.60mm) |
| Gender | Female |
| Series | 206653 |
| Features | Board Guide, Pick and Place, Solder Retention |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Molex |
| Mounting Type | Surface Mount |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | 206653 |
| Number of Positions | 140 |
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 28; 14; 28 |
