Molex 2040661120

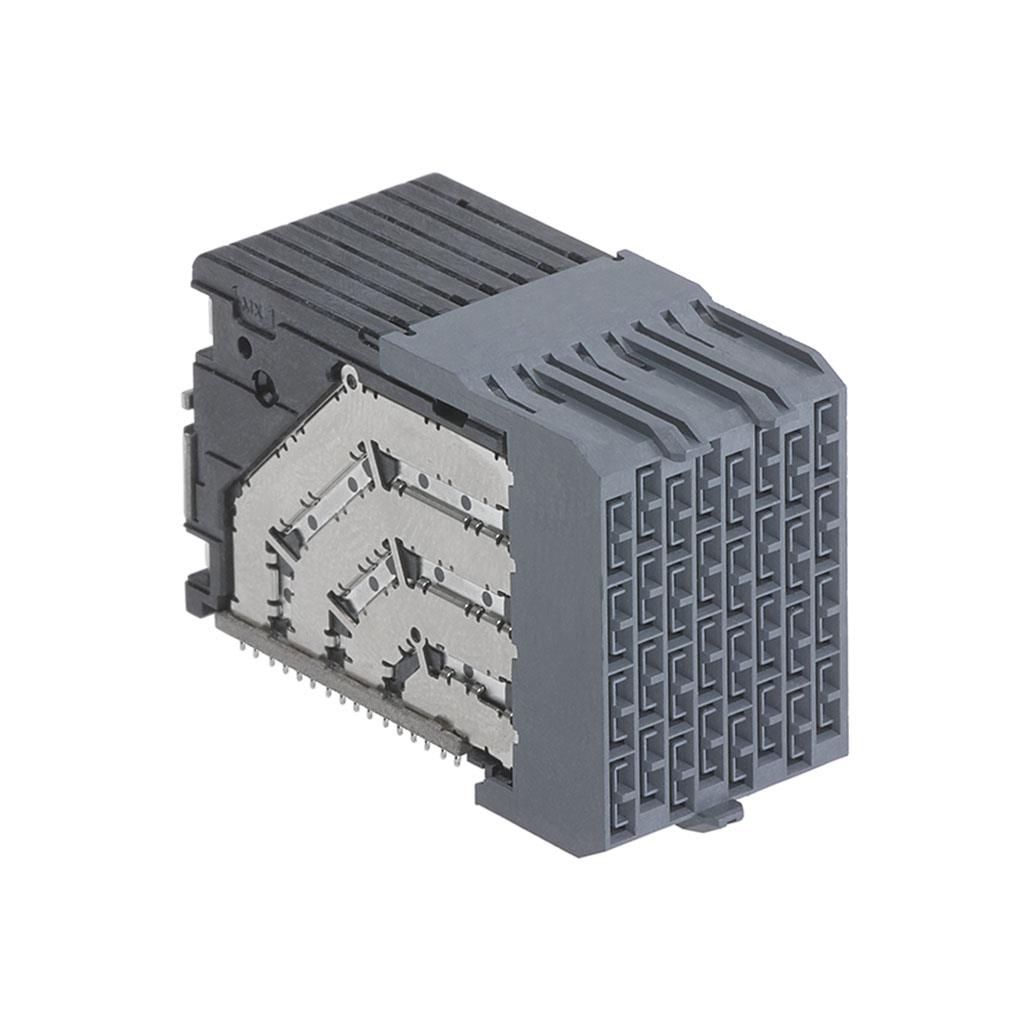

Image shown is a representation only
Manufacturer
Manufacturer No
2040661120
Packaging
Bulk
Description
IMPEL+ 4PX10 UNGUIDED ASSY
Detailed Description
80 Connector Receptacle, Female Sockets Through Hole, Right Angle Black Impel™
DataSheet
Color
Black
Pitch
0.075" (1.90mm)
Series
Impel Plus 204066
Features
Shielded
Packaging
Bulk
Part Status
Active
Termination
Press-Fit
Manufacturer
Molex
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Number of Rows
8
Voltage Rating
29.9VAC/DC
Connector Style
Impel™
Connector Usage
Coplanar, Daughtercard
Number of Columns
10
Base Product Number
204066
Number of Positions
80
Current Rating (Amps)
0.75A per Contact
Operating Temperature
-55°C ~ 85°C
Contact Layout, Typical
40 Differential Pairs
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.075" (1.90mm) |
| Series | Impel Plus 204066 |
| Features | Shielded |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Molex |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 8 |
| Voltage Rating | 29.9VAC/DC |
| Connector Style | Impel™ |
| Connector Usage | Coplanar, Daughtercard |
| Number of Columns | 10 |
| Base Product Number | 204066 |
| Number of Positions | 80 |
| Current Rating (Amps) | 0.75A per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Contact Layout, Typical | 40 Differential Pairs |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
