Step1: Product
Molex 1122170042

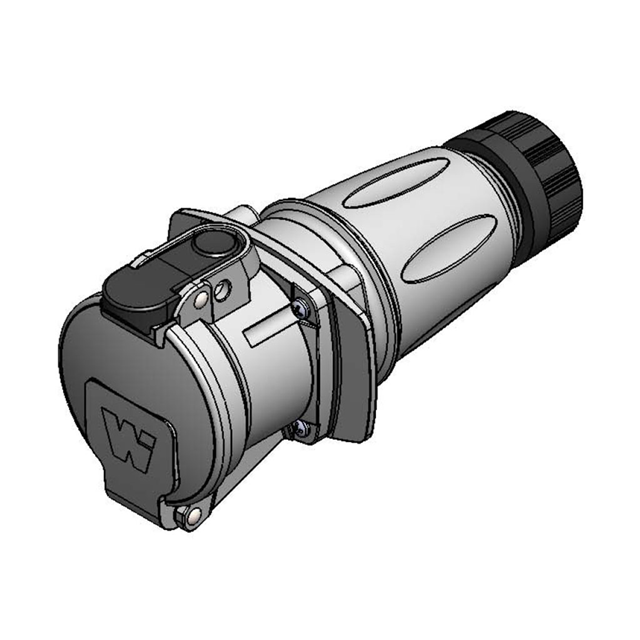

Image shown is a representation only
Manufacturer
Manufacturer No
1122170042
Packaging
Box
Description
ARC 60A FH 347/600VAC 3P+
Detailed Description
5 (4 + PE) Position Circular Connector Receptacle, Female Sockets Screw
DataSheet
Mfr
Molex
Color
Gray
Series
Woodhead ArcArrest 112217
Features
Backshell, Cap (Cover)
Packaging
Box
Shielding
Unshielded
Orientation
14
Part Status
Obsolete
Termination
Screw
Applications
Industrial
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Twist
Shell Material
Polybutylene Terephthalate (PBT), Glass Filled
Insert Material
Polybutylene Terephthalate (PBT), Glass Filled
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
IP69K - Dust Tight, High Temp Water Jets, Waterproof
Base Product Number
112217
Number of Positions
5 (4 + PE)
Current Rating (Amps)
60A
Operating Temperature
-25°C ~ 60°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Polybutylene Terephthalate (PBT), Glass Filled
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Color | Gray |
| Series | Woodhead ArcArrest 112217 |
| Features | Backshell, Cap (Cover) |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | 14 |
| Part Status | Obsolete |
| Termination | Screw |
| Applications | Industrial |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Twist |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insert Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Base Product Number | 112217 |
| Number of Positions | 5 (4 + PE) |
| Current Rating (Amps) | 60A |
| Operating Temperature | -25°C ~ 60°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT), Glass Filled |
